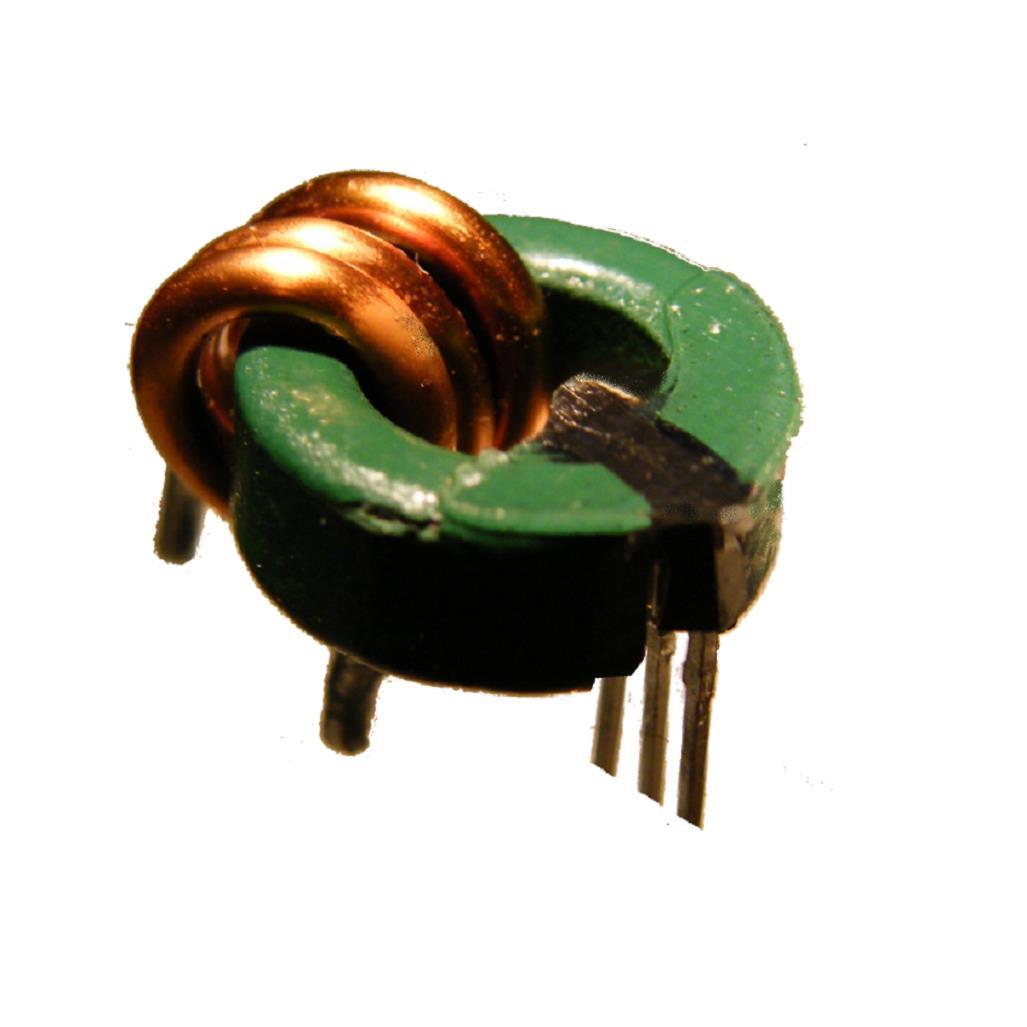

RAZC-173XTAN
ActiveRaztec Sensors
17A CURRENT SENSOR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
RAZC-173XTAN
ActiveRaztec Sensors
17A CURRENT SENSOR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | RAZC-173XTAN |
|---|---|
| Current - Sensing | 17 A |
| Current - Supply (Max) [Max] | 15 mA |
| For Measuring | AC/DC |
| Frequency | 100 kHz |
| Linearity | 1 % |
| Number of Channels | 1 |
| Operating Temperature [Max] | 120 °C |
| Operating Temperature [Min] | -40 °C |
| Output | Analog Voltage |
| Polarization | Bidirectional |
| Sensitivity | 99 mV/A |
| Sensor Type | Hall Effect, Open Loop |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 7.27 | |
| 100 | $ 6.94 | |||
| 1000 | $ 6.60 | |||
| 10000 | $ 6.29 | |||
Description
General part information
RAZC-173XTAN
Current Sensor 17A 1 Channel Hall Effect, Open Loop Bidirectional
