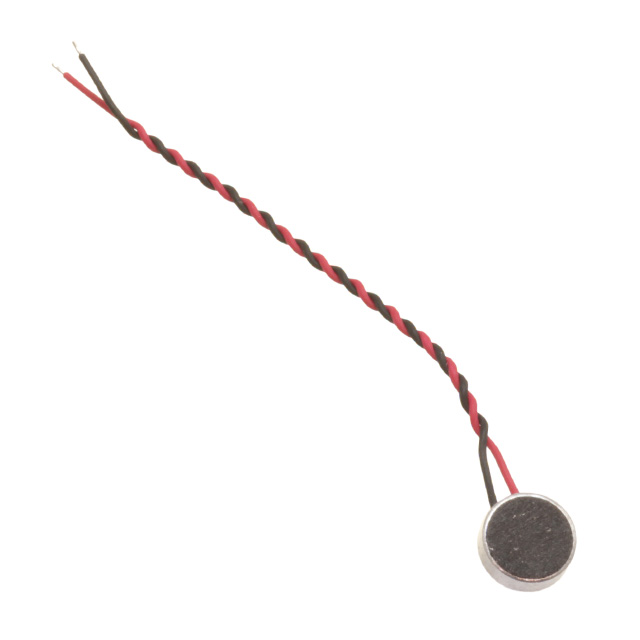

EM-6022L-38
ActiveSoberton Inc.
MIC COND ANLG OMNI -38DB 0.236"D
Deep-Dive with AI
Search across all available documentation for this part.
EM-6022L-38
ActiveSoberton Inc.
MIC COND ANLG OMNI -38DB 0.236"D
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | EM-6022L-38 |
|---|---|
| Current - Supply | 500 µA |
| Direction | Omnidirectional |
| Frequency Range [Max] | 10 kHz |
| Frequency Range [Min] | 50 Hz |
| Height (Max) | 2.4 mm |
| Height (Max) [Max] | 0.094 in |
| Impedance | 2.2 kOhms |
| Output Type | Analog |
| Port Location | Top |
| Ratings | IP50 - Dust Protection |
| S/N Ratio | 58 dB |
| Shape | Circular |
| Size / Dimension [diameter] | 6 mm |
| Size / Dimension [diameter] | 0.236 in |
| Termination | Wire Leads |
| Type | Electret Condenser |
| Voltage - Rated | 2 VDC |
| Voltage Range [Max] | 10 V |
| Voltage Range [Min] | 1 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 1.26 | |
| 10 | $ 1.03 | |||
| 25 | $ 0.95 | |||
| 40 | $ 0.91 | |||
| 100 | $ 0.84 | |||
| 300 | $ 0.76 | |||
| 500 | $ 0.73 | |||
| 1000 | $ 0.68 | |||
| 4900 | $ 0.64 | |||
Description
General part information
EM-6022L-38
50 Hz ~ 10 kHz Analog Microphone Electret Condenser 1 V ~ 10 V Omnidirectional (-38dB ±3dB @ 94dB SPL) Wire Leads
Documents
Technical documentation and resources
No documents available
