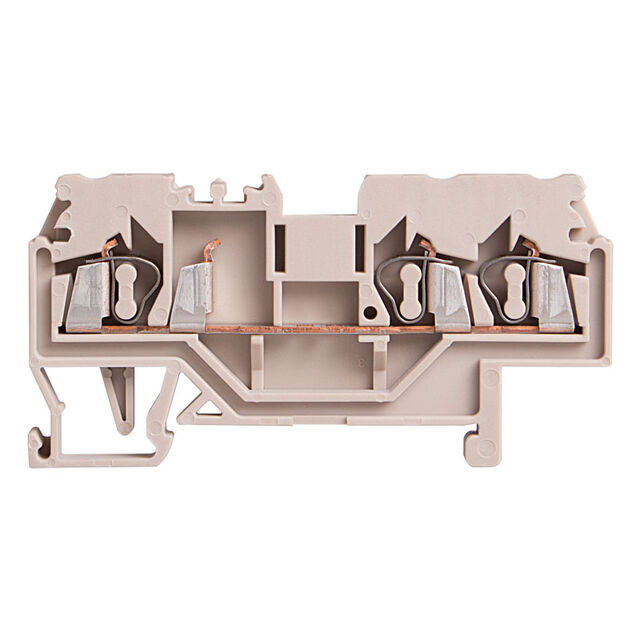

SDU2.5/3-B
ActiveDeca
TERM BLK SPRING 50PCS BUNDLE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SDU2.5/3-B
ActiveDeca
TERM BLK SPRING 50PCS BUNDLE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SDU2.5/3-B |
|---|---|
| Color | Blue |
| Current - UL | 18 A |
| Number of Levels | 1 |
| Terminal - Width | 5 mm |
| Termination Style | Push In, Spring |
| Type | Feed Through |
| Voltage - IEC | 800 V |
| Voltage - UL | 600 V |
| Wire Gauge or Range - AWG [Max] | 28 AWG |
| Wire Gauge or Range - AWG [Min] | 12 AWG |
| Wire Gauge or Range - mm² [Max] | 2.5 mm² |
| Wire Gauge or Range - mm² [Min] | 0.2 mm² |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 60.50 | |
Description
General part information
SDU2.5/3-B
Terminal Block Connector 3 Position Feed Through Blue 12-28 AWG
