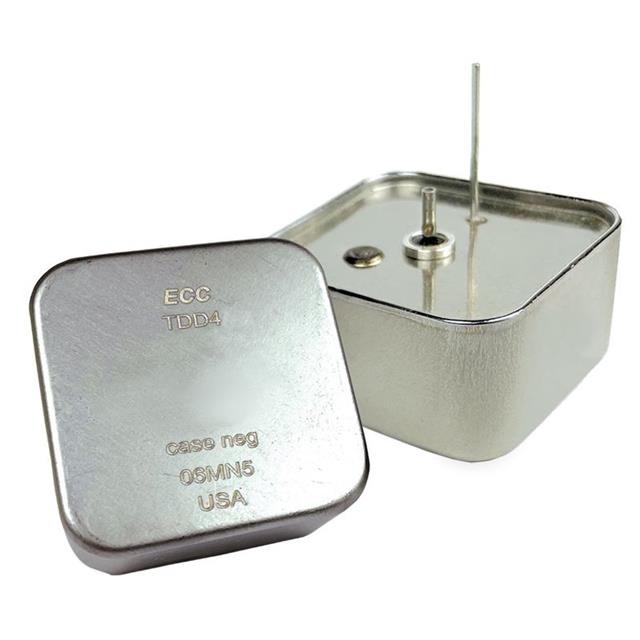

TDD4010244
ActiveQuantic Evans
WET TANTALUM
Deep-Dive with AI
Search across all available documentation for this part.
TDD4010244
ActiveQuantic Evans
WET TANTALUM
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | TDD4010244 |
|---|---|
| Capacitance | 240 mF |
| ESR (Equivalent Series Resistance) | 12 mOhms |
| Features | Hybrid Wet Tantalum |
| Height - Seated (Max) [Max] [z] | 19.56 mm |
| Height - Seated (Max) [Max] [z] | 0.77 " |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | Radial, Can |
| Size / Dimension [x] | 35.56 mm |
| Size / Dimension [x] | 1.4 in |
| Size / Dimension [y] | 1.4 in |
| Size / Dimension [y] | 35.56 mm |
| Tolerance | 20 % |
| Type | Hermetically Sealed |
| Voltage - Rated | 10 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 1 | $ 1915.00 | |
| 10 | $ 1464.00 | |||
| 50 | $ 1336.00 | |||
Description
General part information
TDD4010244
240 mF Hermetically Sealed Tantalum Capacitors 10 V Radial, Can 12mOhm
Documents
Technical documentation and resources
No documents available
