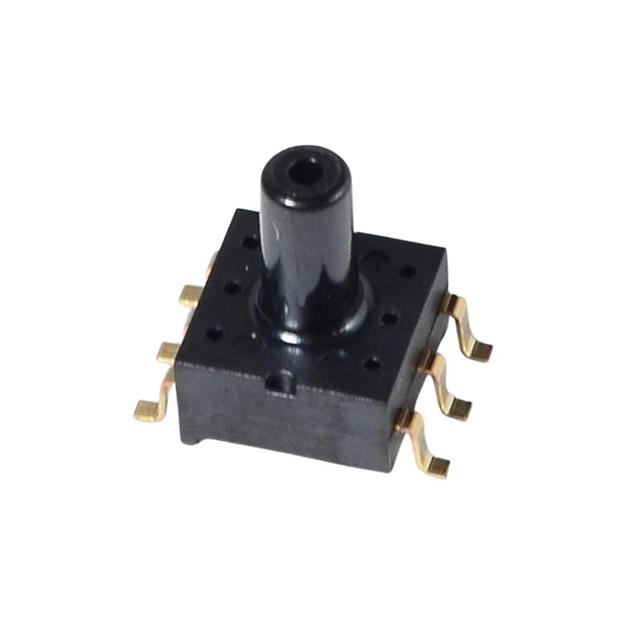

PPS34-1-5G11
ActivePhoenix Sensors
PRESSURE SENSOR, 5PSIG, 0.12"
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | PPS34-1-5G11 |
|---|---|
| Accuracy | 0.5 % |
| Applications | Board Level |
| Features | Temperature Compensated |
| Maximum Pressure | 51.71 kPa |
| Maximum Pressure | 7.5 PSI |
| Operating Pressure [Max] | 5 PSI |
| Operating Pressure [Max] | 34.47 kPa |
| Operating Pressure [Min] | -101.3 kPa |
| Operating Pressure [Min] | -14.69 PSI |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | 14 b |
| Output Type | I2C |
| Package / Case | 6-SMD, Gull Wing, Top Port |
| Port Size | Male - Tube |
| Port Size | 3 mm, 0.12 " |
| Port Style | Barbless |
| Pressure Type | Gauge |
| Termination Style | Gull Wing |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.5 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tube | 1 | $ 39.00 | |
Description
General part information
PPS34-1-5G11
Pressure Sensor -14.69PSI ~ 5PSI (-101.3kPa ~ 34.47kPa) Gauge Male - 0.12" (3mm) Tube 14 b 6-SMD, Gull Wing, Top Port
