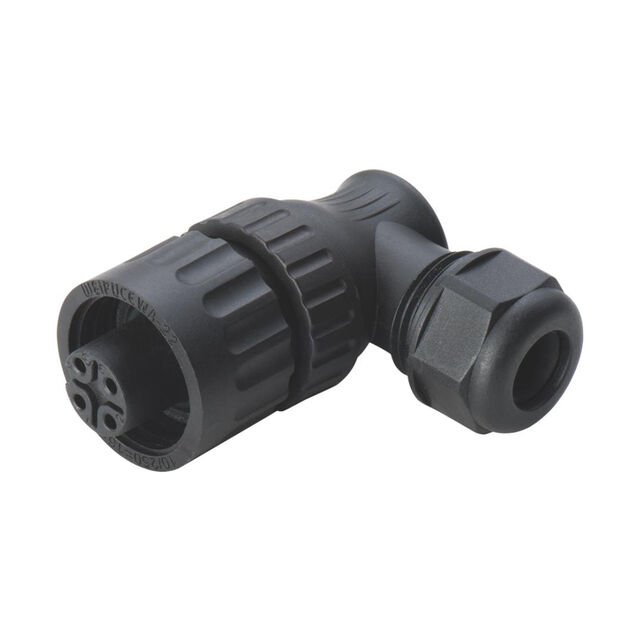

WA22K4TL2II
ActiveWeipu Connector
CONN PLUG FEMALE 4P SCREW
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WA22K4TL2II
ActiveWeipu Connector
CONN PLUG FEMALE 4P SCREW
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WA22K4TL2II |
|---|---|
| Cable Opening [diameter] | 12 mm, 7 mm |
| Cable Opening [diameter] | 0.472 in, 0.276 in |
| Color | Black |
| Connector Type | Female Sockets, Plug |
| Contact Finish - Mating | Gold |
| Current Rating (Amps) | 16 A |
| Ingress Protection | IP67 |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Angled, Free Hanging (In-Line) |
| Number of Positions | 4 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Primary Material | Plastic |
| Shell Material | Nylon 6/6 |
| Shielding | Unshielded |
| Termination | Screw |
| Voltage Rating | 400 VAC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 6.71 | |
| 10 | $ 5.87 | |||
| 25 | $ 5.53 | |||
| 50 | $ 5.20 | |||
| 100 | $ 4.86 | |||
| 250 | $ 4.53 | |||
| 500 | $ 4.19 | |||
Description
General part information
WA22K4TL2II
4 Position Circular Connector Plug, Female Sockets Screw
