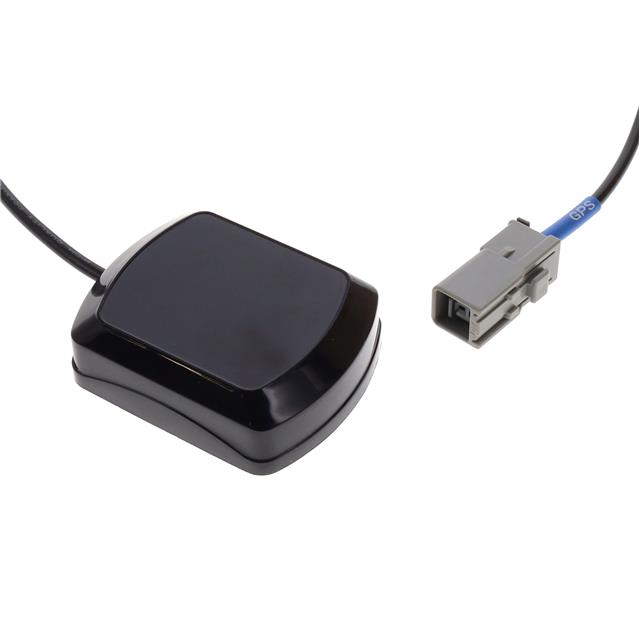

AN_GPS_A001 GT5
ActiveSuzhou Maswell Communication Technology Co. Ltd
GPS ACTIVE ANTENNA MAGNET MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AN_GPS_A001 GT5 |
|---|---|
| Antenna Type | Module |
| Applications | GPS |
| Features | Cable - 3m, LNA |
| Frequency (Center/Band) | 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.576 GHz |
| Frequency Range [Min] | 1.574 GHz |
| Gain | 2 dBic |
| Height (Max) [Max] | 14.9 mm |
| Height (Max) [Max] | 0.587 in |
| Mounting Type | Magnetic |
| Number of Bands | 1 |
| RF Family/Standard | Navigation |
| Termination | GT5 Female |
| VSWR | 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 19.63 | |
| 10 | $ 13.92 | |||
| 25 | $ 12.43 | |||
| 100 | $ 11.19 | |||
| 250 | $ 14.01 | |||
| 500 | $ 13.11 | |||
Description
General part information
AN_GPS_A001 GT5
RF ANTENNA GPS Module GT5 Female Magnetic
