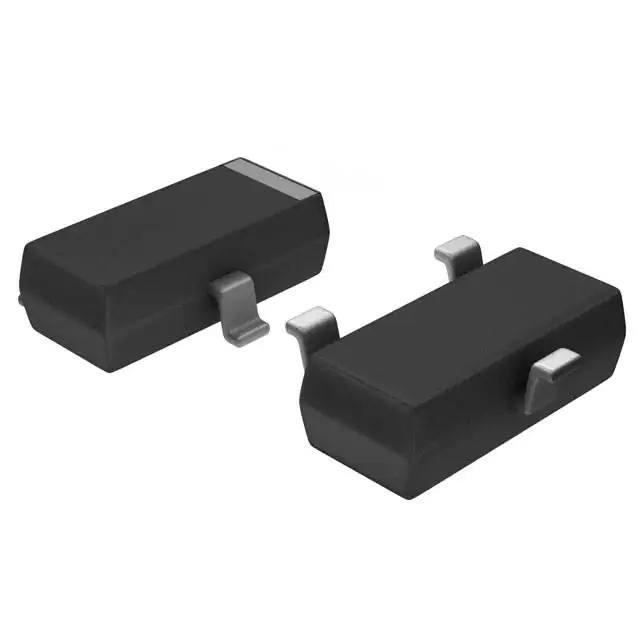

AS6004
ActiveANBON SEMICONDUCTOR (INT'L) LIMITED
P-CHANNEL ENHANCEMENT MODE MOSFE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AS6004
ActiveANBON SEMICONDUCTOR (INT'L) LIMITED
P-CHANNEL ENHANCEMENT MODE MOSFE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AS6004 |
|---|---|
| Current - Continuous Drain (Id) @ 25°C | 4 A |
| Drain to Source Voltage (Vdss) | 60 V |
| Drive Voltage (Max Rds On, Min Rds On) | 10 V, 4.5 V |
| FET Type | P-Channel |
| Gate Charge (Qg) (Max) @ Vgs [Max] | 25 nC |
| Input Capacitance (Ciss) (Max) @ Vds | 930 pF |
| Mounting Type | Surface Mount |
| Operating Temperature | 150 °C |
| Package / Case | SOT-23-3, TO-236-3, SC-59 |
| Power Dissipation (Max) | 1.5 W |
| Rds On (Max) @ Id, Vgs | 120 mΩ |
| Supplier Device Package | SOT-23-3L |
| Technology | MOSFET (Metal Oxide) |
| Vgs (Max) | 20 V |
| Vgs(th) (Max) @ Id | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.49 | |
| 10 | $ 0.35 | |||
| 100 | $ 0.18 | |||
| 500 | $ 0.16 | |||
| 1000 | $ 0.12 | |||
| Digi-Reel® | 1 | $ 0.50 | ||
| 10 | $ 0.31 | |||
| 100 | $ 0.19 | |||
| 500 | $ 0.15 | |||
| 1000 | $ 0.13 | |||
| Tape & Reel (TR) | 3000 | $ 0.11 | ||
| 6000 | $ 0.11 | |||
| 9000 | $ 0.09 | |||
| 30000 | $ 0.09 | |||
| 75000 | $ 0.08 | |||
Description
General part information
AS6004
P-Channel 60 V 4A (Ta) 1.5W (Ta) Surface Mount SOT-23-3L
