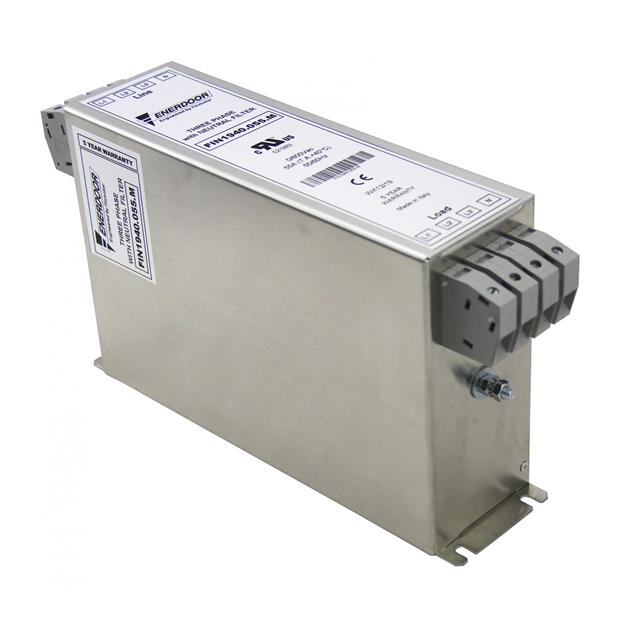

FIN1940.200.M
ActiveEnerdoor
LINE FILTER 200A CHASSIS MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
FIN1940.200.M
ActiveEnerdoor
LINE FILTER 200A CHASSIS MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | FIN1940.200.M |
|---|---|
| Applications | General Purpose |
| Approval Agency | UL, CSA, CE, cURus |
| Configuration | Two Stage |
| Current | 200 A |
| Filter Type | Three Phase (Wye) |
| Frequency - Operating [Max] | 60 Hz |
| Frequency - Operating [Min] | 50 Hz |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Termination Style | Terminal Block |
| Voltage - Rated AC (Phase to Ground/Neutral) | 3.2 kV |
| Voltage - Rated AC (Phase to Phase) | 2.4 kV |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 1238.06 | |
Description
General part information
FIN1940.200.M
Three Phase (Wye) EMC/EMI Line Filter 200 A 50/60Hz Two Stage Terminal Block
