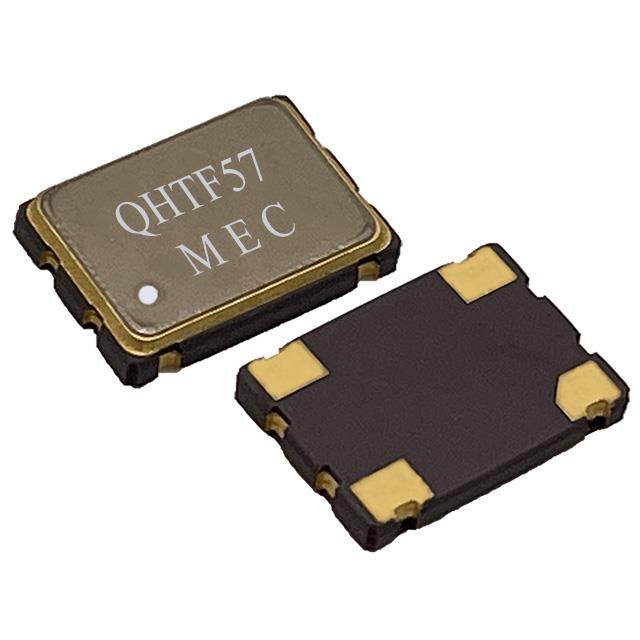

18QHTF57-22.1776-OE
ActiveMercury United Electronics, Inc.
22.1776 MHZ XO 1.8V 7.0X5.0MM OE
Deep-Dive with AI
Search across all available documentation for this part.
18QHTF57-22.1776-OE
ActiveMercury United Electronics, Inc.
22.1776 MHZ XO 1.8V 7.0X5.0MM OE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 18QHTF57-22.1776-OE |
|---|---|
| Base Resonator | Crystal |
| Current - Supply (Max) [Max] | 22 mA |
| Frequency | 22.1776 MHz |
| Frequency Stability | 50 ppm |
| Function | Enable/Disable |
| Height - Seated (Max) [Max] [z] | 1.3 mm |
| Height - Seated (Max) [Max] [z] | 0.051 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Output | LVCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 7 mm |
| Size / Dimension [x] | 0.276 " |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Type | XO (Standard) |
| Voltage - Supply | 1.8 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 5 | $ 31.15 | |
| 10 | $ 19.97 | |||
| 25 | $ 15.66 | |||
| 50 | $ 13.35 | |||
| 75 | $ 10.77 | |||
| 100 | $ 8.55 | |||
| 250 | $ 7.17 | |||
Description
General part information
18QHTF57-22.1776-OE
22.1776 MHz XO (Standard) LVCMOS Oscillator 1.8V Enable/Disable 4-SMD, No Lead
Documents
Technical documentation and resources
No documents available
