BB170-OR
ActiveBusBoard Prototype Systems

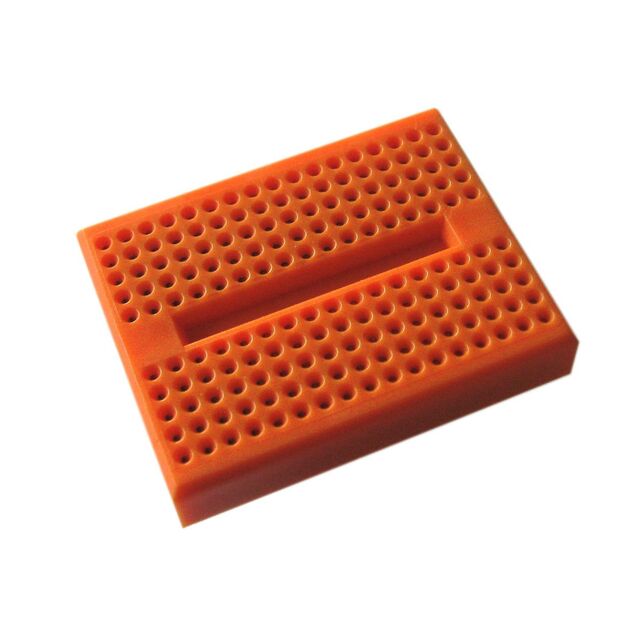

ORANGE 170-POINT BREADBOARD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BB170-OR |
|---|---|
| Number of 5-Tie Point Terminals | 34 |
| Number of Terminal Strips | 1 |
| Number of Tie Points (Total) | 170 |
| Size / Dimension [x] | 45.7 mm |
| Size / Dimension [x] | 1.8 " |
| Size / Dimension [y] | 1.4 in |
| Size / Dimension [y] | 35.6 mm |
| Type | Distribution Strip (No Frame) |
| Wire Gauge [Max] | 26 AWG |
| Wire Gauge [Min] | 21 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.90 | |
Description
General part information
BB170-OR
Solderless Breadboard Distribution Strip (No Frame) 1.80" x 1.40" (45.7mm x 35.6mm)
