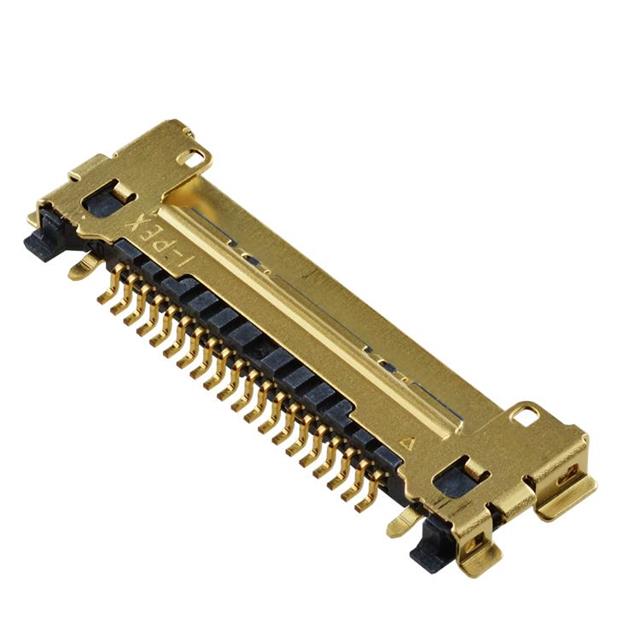

20525-020E-02
ActiveI-PEX
CABLINE-CA RECEPTACLE 20P
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
20525-020E-02
ActiveI-PEX
CABLINE-CA RECEPTACLE 20P
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 20525-020E-02 |
|---|---|
| Contact Material | Phosphor Bronze |
| Features | Solder Retention, Shielded |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount, Right Angle |
| Number of Positions | 20 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -40 °C |
| Termination | Solder |
| Voltage Rating | 100 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 2.18 | |
| 10 | $ 1.90 | |||
| 25 | $ 1.82 | |||
| 50 | $ 1.78 | |||
| 100 | $ 1.70 | |||
| 250 | $ 1.54 | |||
| 500 | $ 1.41 | |||
| 1000 | $ 1.21 | |||
| 2500 | $ 1.13 | |||
| Digi-Reel® | 1 | $ 2.18 | ||
| 10 | $ 1.90 | |||
| 25 | $ 1.82 | |||
| 50 | $ 1.78 | |||
| 100 | $ 1.70 | |||
| 250 | $ 1.54 | |||
| 500 | $ 1.41 | |||
| 1000 | $ 1.21 | |||
| 2500 | $ 1.13 | |||
| Tape & Reel (TR) | 5000 | $ 1.03 | ||
| 10000 | $ 1.00 | |||
Description
General part information
20525-020E-02
20 Position Connector Surface Mount, Right Angle
