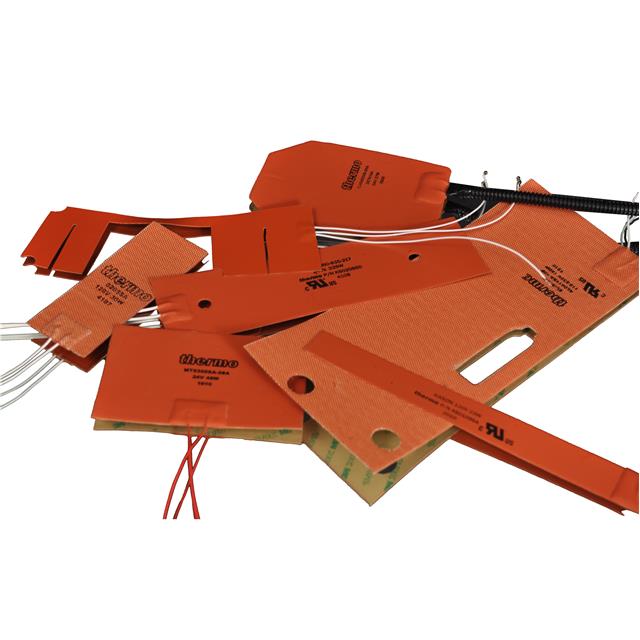

DK0405SB
ActiveThermo Heating Elements
4.0 X 5.0 IN. SILICONE RUBBER HE
Deep-Dive with AI
Search across all available documentation for this part.
DK0405SB
ActiveThermo Heating Elements
4.0 X 5.0 IN. SILICONE RUBBER HE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | DK0405SB |
|---|---|
| Attachment Method | Pressure Sensitive Adhesive (PSA) |
| Color | Black |
| Length | 5 in |
| Length | 127 mm |
| Length - Lead Wire [x] | 12 in |
| Length - Lead Wire [x] | 304.8 mm |
| Material | Silicone Rubber |
| Material - Insulation | Polytetrafluoroethylene (PTFE) |
| Power (Watts) | 10 W |
| Resistance | 14.4 Ohms |
| Shape | Rectangular |
| Temperature Rating | 428 °F |
| Temperature Rating | 220 °C |
| Termination | Wire Leads |
| Type | Wound |
| Voltage | 24 V |
| Width [x] | 4 " |
| Width [x] | 101.6 mm |
| Wire Gauge | 20 AWG |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 4 | $ 71.95 | |
Description
General part information
DK0405SB
4.0 X 5.0 IN. SILICONE RUBBER HE
Documents
Technical documentation and resources
No documents available
