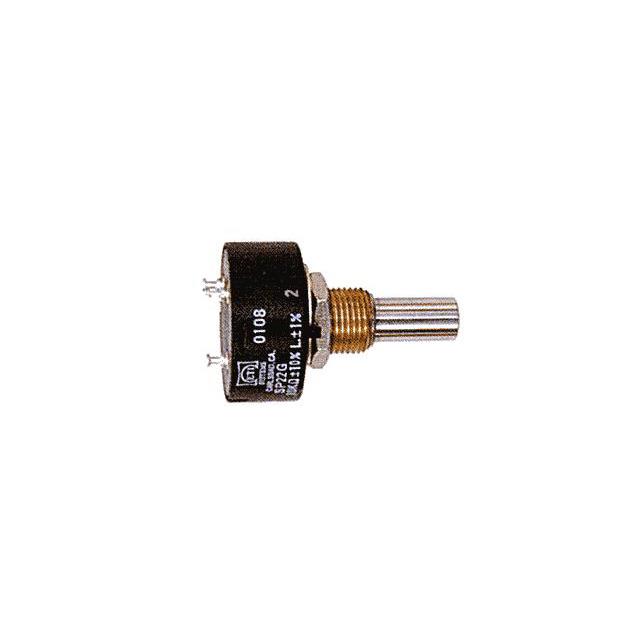

SP22G-1K
ActiveETI Systems
POT 1K OHM 1W PLASTIC LINEAR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SP22G-1K
ActiveETI Systems
POT 1K OHM 1W PLASTIC LINEAR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SP22G-1K |
|---|---|
| Actuator Diameter | 10.26 mm |
| Actuator Diameter [diameter] | 0.404 " |
| Actuator Length [z] | 22.23 mm |
| Actuator Length [z] | 0.875 in |
| Actuator Type | Round |
| Adjustment Type | User Defined |
| Built in Switch | False |
| Bushing Thread | 3/8-32 |
| Number of Gangs | 1 |
| Number of Turns | 1 |
| Power (Watts) | 1 W |
| Resistance (Ohms) | 1 kOhms |
| Resistive Material | Conductive Plastic |
| Rotation | Continuous |
| Size - Body [diameter] | 21.84 mm |
| Size - Body [diameter] | 0.86 in |
| Taper | Linear |
| Temperature Coefficient | 400 ppm/°C |
| Termination Style | Solder Turret |
| Tolerance | 10 % |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 40.56 | |
| 10 | $ 36.06 | |||
| 100 | $ 27.04 | |||
Description
General part information
SP22G-1K
1k Ohm 1 Gang Linear Panel Mount Potentiometer 1.0 Turns Conductive Plastic 1W Solder Turret
