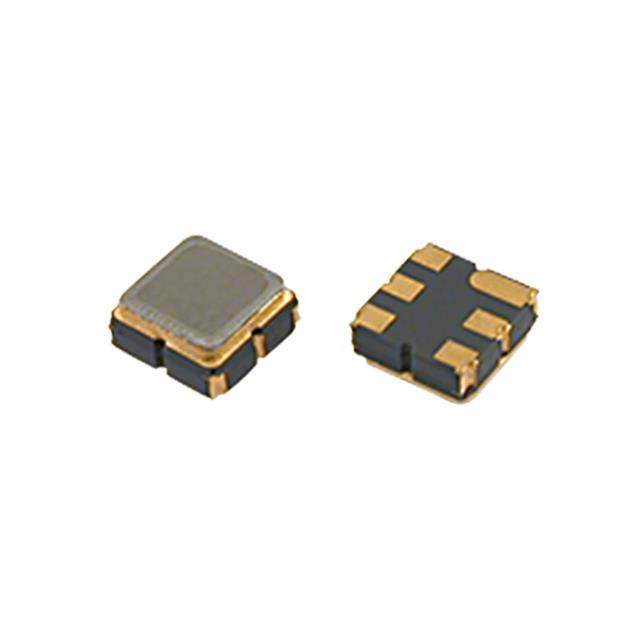

MA07956
ActiveGolledge Electronics Ltd
815.50 MHZ GSRF TA0430A SAW FILT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MA07956
ActiveGolledge Electronics Ltd
815.50 MHZ GSRF TA0430A SAW FILT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MA07956 |
|---|---|
| Applications | Wireless |
| Bandwidth | 19 MHz |
| Frequency - Center | 815.5 MHz |
| Height (Max) | 1.4 mm |
| Height (Max) [Max] | 0.055 in |
| Insertion Loss | 3.5 dB |
| Mounting Type | Surface Mount |
| Package / Case | 6-SMD, No Lead |
| Size / Dimension [x] | 0.118 in |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 3 mm |
| Size / Dimension [y] | 0.118 in |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 5 | $ 7.85 | |
| 10 | $ 6.79 | |||
| 50 | $ 5.10 | |||
| 100 | $ 3.69 | |||
| 500 | $ 2.99 | |||
Description
General part information
MA07956
815.5MHz Frequency Wireless RF SAW Filter (Surface Acoustic Wave) 3.5dB 19MHz Bandwidth 6-SMD, No Lead
Documents
Technical documentation and resources
