H2MA704K104100
ActiveUnictron Technologies Corporation
ACTIVE ANTENNA HB80DG; GPS(L1+L2
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
H2MA704K104100
ActiveUnictron Technologies Corporation
ACTIVE ANTENNA HB80DG; GPS(L1+L2
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | H2MA704K104100 |
|---|---|
| Antenna Type | Module |
| Applications | QZSS, Galileo, GLONASS, GPS, Beidou |
| Features | 5 m |
| Frequency (Center/Band) | 1.561 GHz, 1.227 GHz, 1.602 GHz, 1.575 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Gain | 3.9 dBi, 4.5 dBi, 3.2 dBi, 5 dBi |
| Height (Max) [Max] [z] | 25.4 mm |
| Height (Max) [Max] [z] | 1 in |
| Mounting Type | Surface Mount |
| Number of Bands | 4 |
| Return Loss | -10 dB |
| RF Family/Standard | Navigation |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 58.33 | |
| 10 | $ 54.79 | |||
| 25 | $ 53.02 | |||
| 100 | $ 49.14 | |||
Description
General part information

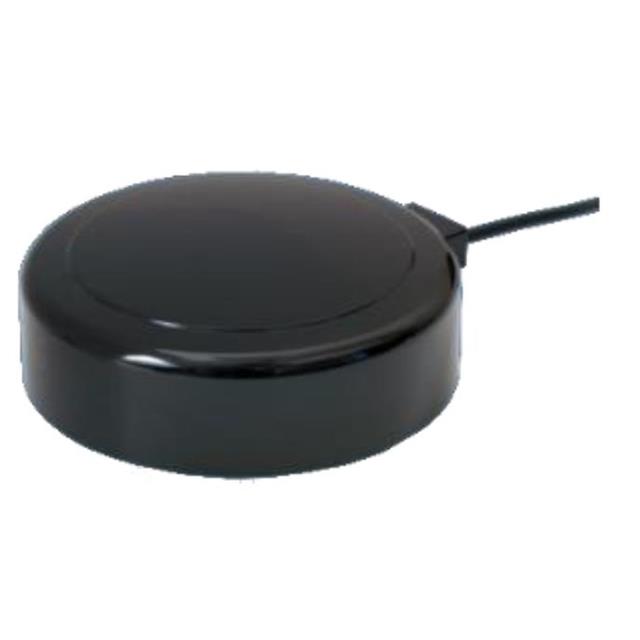

H2MA704K104100
RF ANTENNA BeiDou, Galileo, GLONASS, GPS, QZSS Module Surface Mount
