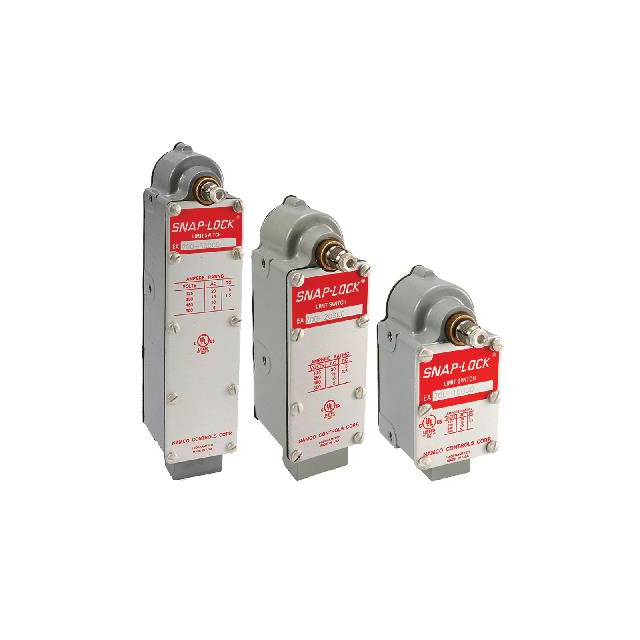

EA700-70100
ActiveNamco/SPT
SWITCH LIMIT SPDT 20A 125V
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
EA700-70100
ActiveNamco/SPT
SWITCH LIMIT SPDT 20A 125V
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | EA700-70100 |
|---|---|
| Actuator Type | Side Rotary - No Lever |
| Circuit | SPDT |
| Current Rating (Amps) | 20 A, 5 A |
| Mounting Type | Chassis Mount |
| Operating Temperature [Max] | 90 °C |
| Operating Temperature [Min] | -20 C |
| Switch Function | On-Mom |
| Termination Style | Screw Terminal |
| Voltage Rating - AC | 125 V |
| Voltage Rating - DC | 125 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 2 | $ 465.35 | |
Description
General part information
EA700-70100
Switch SPDT Chassis Mount
Documents
Technical documentation and resources
