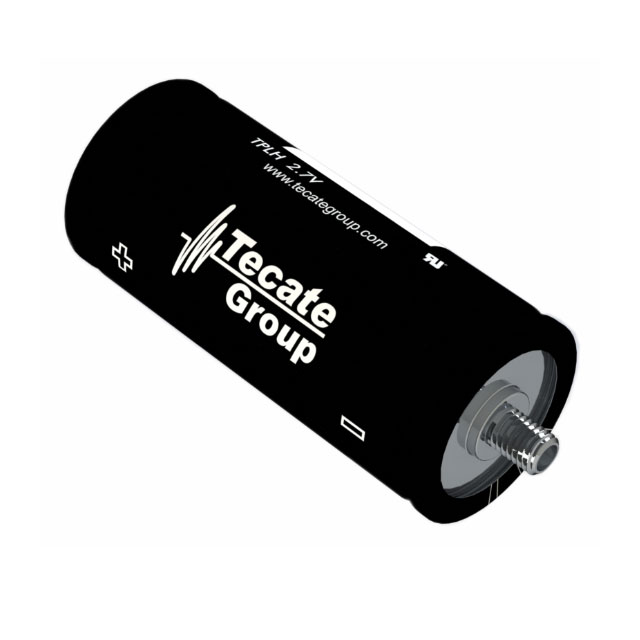

TPLH-2R7/650SL60X51
ActiveTecate Group
CAP 650F 2.7V CHASSIS STUD MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
TPLH-2R7/650SL60X51
ActiveTecate Group
CAP 650F 2.7V CHASSIS STUD MOUNT
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | TPLH-2R7/650SL60X51 |
|---|---|
| Capacitance | 650 F |
| ESR (Equivalent Series Resistance) | 0.35 mOhm |
| Height - Seated (Max) [Max] [z] | 2.047 in |
| Height - Seated (Max) [Max] [z] | 52 mm |
| Lifetime @ Temp. | 1500 Hrs |
| Mounting Type | Chassis, Stud Mount |
| Operating Temperature [Max] | 65 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Axial, Can - Screw Terminals |
| Size / Dimension [diameter] | 60 mm |
| Size / Dimension [diameter] | 2.362 in |
| Termination | Screw Terminals |
| Voltage - Rated | 2.7 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 48.51 | |
| 20 | $ 36.23 | |||
| 60 | $ 33.28 | |||
| 100 | $ 32.11 | |||
Description
General part information
TPLH-2R7/650SL60X51
650 F (EDLC) Supercapacitor 2.7 V Axial, Can - Screw Terminals 0.35mOhm 1500 Hrs @ 65°C
