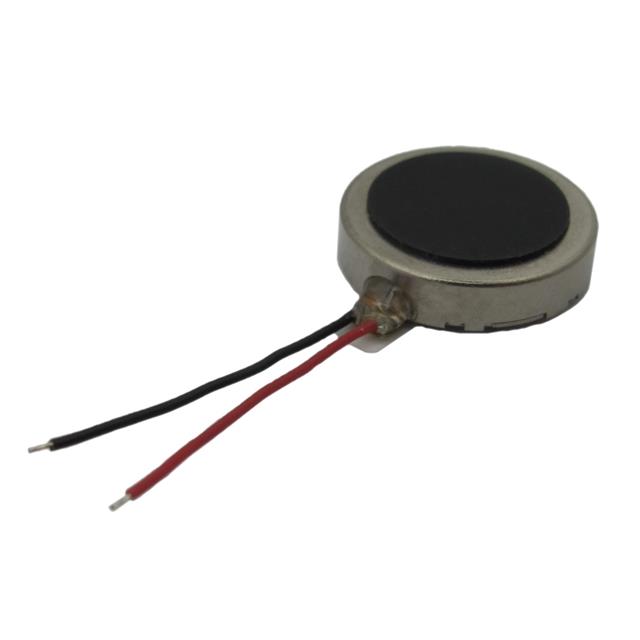

VC1434B002U
ActiveVybronics Inc
VIBRATION ERM MOTOR 9K RPM 3.0G
Deep-Dive with AI
Search across all available documentation for this part.
VC1434B002U
ActiveVybronics Inc
VIBRATION ERM MOTOR 9K RPM 3.0G
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VC1434B002U |
|---|---|
| Function | ERM, Vibration |
| Motor Type | Brushed |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| RPM | 9000 RPM |
| Size / Dimension | Round |
| Size / Dimension [diameter] | 0.551 in |
| Size / Dimension [diameter] | 14 mm |
| Termination Style | Wire Leads |
| Torque - Rated (oz-in / mNm) | 4.17 oz-in |
| Torque - Rated (oz-in / mNm) | 29.42 mNm |
| Type | DC Motor |
| Voltage - Rated | 3.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 3.55 | |
| 5 | $ 3.36 | |||
| 10 | $ 3.27 | |||
| 25 | $ 3.17 | |||
| 50 | $ 2.89 | |||
| 100 | $ 2.61 | |||
| 300 | $ 2.52 | |||
| 500 | $ 2.48 | |||
| 1000 | $ 2.33 | |||
Description
General part information
VC1434B002U
Brushed DC Motor Vibration, ERM 9000 RPM 3.7VDC
Documents
Technical documentation and resources
No documents available
