AN240206-01H
ActiveSevskiy GmbH
PATCH ARRAY 2400MHZ WITH SWITCH
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AN240206-01H
ActiveSevskiy GmbH
PATCH ARRAY 2400MHZ WITH SWITCH
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AN240206-01H |
|---|---|
| Antenna Type | Patch, 4-Element |
| Features | Cable - 150mm |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 1.1 dBi |
| Height (Max) [Max] | 2 mm |
| Height (Max) [Max] | 0.079 in |
| Mounting Type | Screw Mount |
| Number of Bands | 1 |
| Power - Max [Max] | 10 W |
| Return Loss | -15 dB |
| RF Family/Standard | WiFi |
| Termination | I-PEX MHF1, U.FL (UMCC) |
| VSWR | 1.43 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 37.09 | |
| 10 | $ 35.68 | |||
| 50 | $ 34.32 | |||
| 100 | $ 33.02 | |||
| 500 | $ 31.76 | |||
| 1000 | $ 30.56 | |||
| 5000 | $ 29.40 | |||
| 10000 | $ 28.28 | |||
| 50000 | $ 27.20 | |||
Description
General part information
AN240206-01H

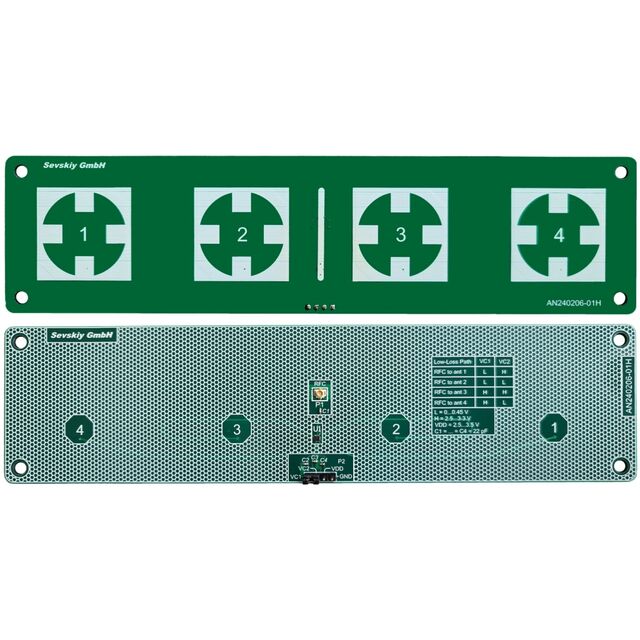

RF ANTENNA Bluetooth LE 5.1/5.2, AoA Patch, 4-Element U.FL (UMCC), I-PEX MHF1 Screw Mount
