MEA-1227-MM
ActiveMaxtena Inc
GNSS/L1/L2 MAGNET MOUNT
Deep-Dive with AI
Search across all available documentation for this part.
MEA-1227-MM
ActiveMaxtena Inc
GNSS/L1/L2 MAGNET MOUNT
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | MEA-1227-MM |
|---|---|
| Antenna Type | Module |
| Applications | GNSS, GLONASS, GPS |
| Features | 3 m |
| Features | Filter |
| Frequency (Center/Band) | 1.583 GHz, 1.217 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.606 GHz, 1.26 GHz |
| Frequency Range [Min] | 1.175 GHz, 1.561 GHz |
| Gain | 4.4 dBi, 4.9 dBi |
| Height (Max) [Max] | 0.846 in |
| Height (Max) [Max] | 21.5 mm |
| Ingress Protection | IP67, IP69 |
| Mounting Type | Magnetic |
| Number of Bands | 2 |
| Power - Max [Max] | 48 mW |
| Return Loss | -16.2 dB, -17.1 dB |
| RF Family/Standard | Navigation |
| VSWR | 1.7, 1.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information

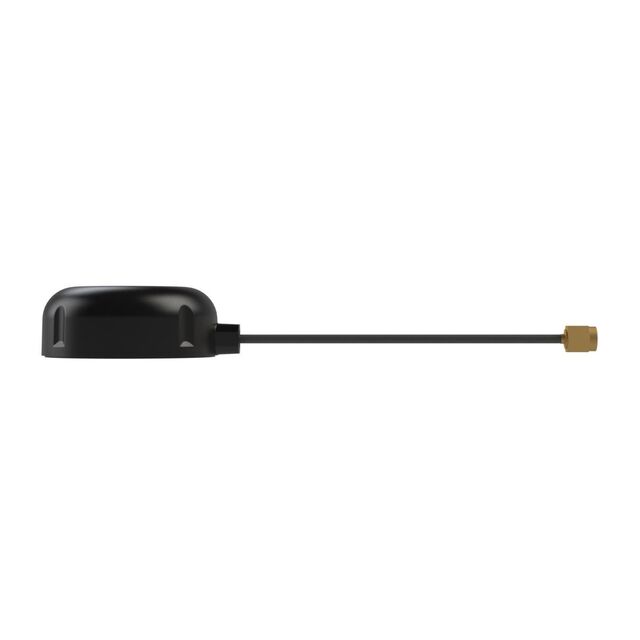

MEA-1227-MM
RF ANTENNA GLONASS, GNSS, GPS Module SMA Male Magnetic
Documents
Technical documentation and resources
No documents available
