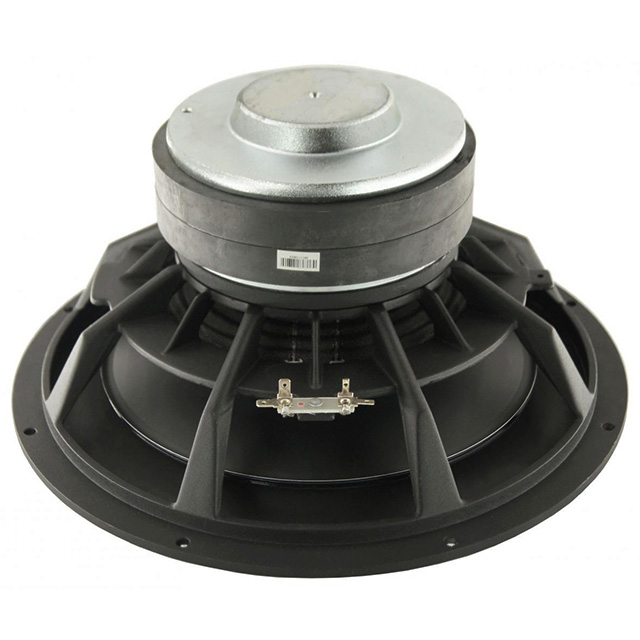

XXLS-300F50AL01-04
ObsoletePeerless by Tymphany
SPEAKER 3.03OHM 120W TOP PT 85DB
Deep-Dive with AI
Search across all available documentation for this part.
XXLS-300F50AL01-04
ObsoletePeerless by Tymphany
SPEAKER 3.03OHM 120W TOP PT 85DB
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | XXLS-300F50AL01-04 |
|---|---|
| Efficiency - dBA | 85 dBA |
| Efficiency - Type | Half Space Sensitivity |
| Frequency - Self Resonant | 22.4 Hz |
| Frequency Range [Max] | 4 kHz |
| Frequency Range [Min] | 20 Hz |
| Height - Seated (Max) [Max] [z] | 6.388 " |
| Height - Seated (Max) [Max] [z] | 162.25 mm |
| Impedance | 3.03 Ohms |
| Material - Cone | Aluminum (AI) |
| Material - Magnet | Ferrite |
| Port Location | Top |
| Power - Rated | 120 W |
| Shape | Round |
| Size / Dimension | 307.9 mm |
| Size / Dimension [diameter] | 12.122 in |
| Technology | Magnetic |
| Termination | Solder Eyelet(s) |
| Type | Subwoofer |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
XXLS-300F50AL01-04
3.03 Ohms Subwoofer Speaker 120 W 20 Hz ~ 4 kHz Top Round
Documents
Technical documentation and resources
No documents available
