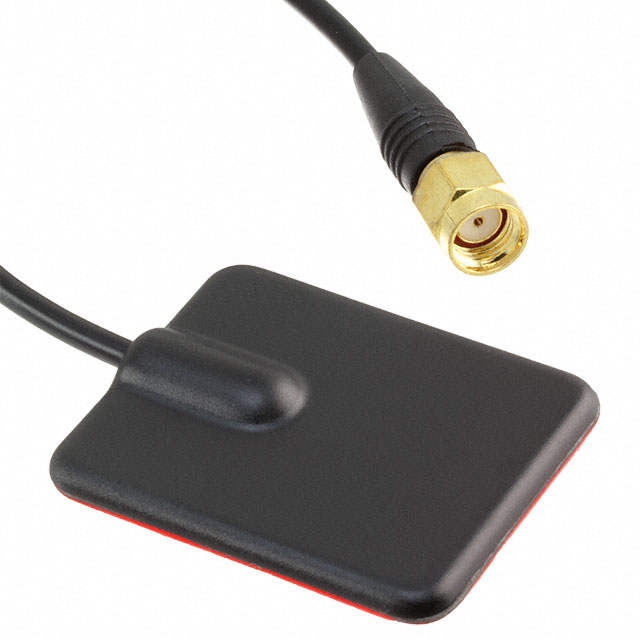

ALPHA16/1M/SMAM/S/RP/17
ActiveSiretta Ltd
RF ANT 2.4GHZ BLADE RP-SMA MALE
Deep-Dive with AI
Search across all available documentation for this part.
ALPHA16/1M/SMAM/S/RP/17
ActiveSiretta Ltd
RF ANT 2.4GHZ BLADE RP-SMA MALE
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ALPHA16/1M/SMAM/S/RP/17 |
|---|---|
| Antenna Type | Blade |
| Applications | Bluetooth, WLAN, Zigbee™ |
| Frequency Range [Max] | 2.5 GHz |
| Frequency Range [Min] | 2.4 GHz |
| Gain | 2 dBic |
| Height (Max) [Max] | 2 mm |
| Height (Max) [Max] | 0.079 in |
| Mounting Type | Adhesive |
| Number of Bands | 1 |
| RF Family/Standard | WiFi, Bluetooth, 802.15.4 |
| Termination | RP-SMA Male |
| VSWR | 2 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 14.08 | |
| 10 | $ 12.94 | |||
| 25 | $ 12.41 | |||
| 100 | $ 10.93 | |||
| 250 | $ 10.39 | |||
| 500 | $ 9.72 | |||
| 1000 | $ 8.92 | |||
Description
General part information
ALPHA16/1M/SMAM/S/RP/17
RF ANTENNA Bluetooth, WLAN, Zigbee™ Blade RP-SMA Male Adhesive
