Technical Specifications
Parameters and characteristics for this part
| Specification | IRFS-0501-NOWP3 |
|---|---|
| Indicator [custom] | LED |
| Ingress Protection | IP67 |
| Material - Body | Polyamide (PA), Stainless Steel |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -25 °C |
| Output Type | NPN-NO, 3-Wire |
| Package / Case | Cylinder, Threaded - M5 |
| Sensing Distance | 1 mm |
| Sensing Distance | 0.039 " |
| Sensor Type | Inductive |
| Shielding | Unshielded |
| Termination Style | Connector |
| Voltage - Supply [Max] | 30 VDC |
| Voltage - Supply [Min] | 10 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 29.50 | |
| 25 | $ 26.55 | |||
Description
General part information
IRFS-0501-NOWP3

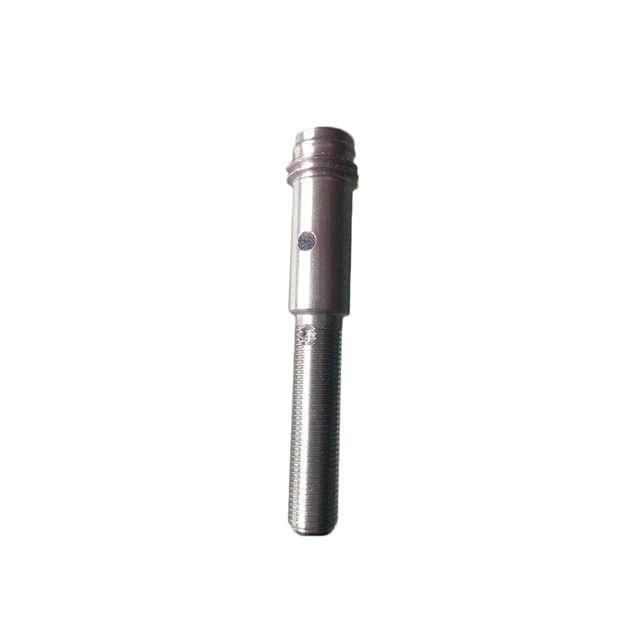

Inductive Proximity Sensor 0.039" (1mm) IP67 Cylinder, Threaded - M5
