CD09AA-GY
ActiveHummel AG

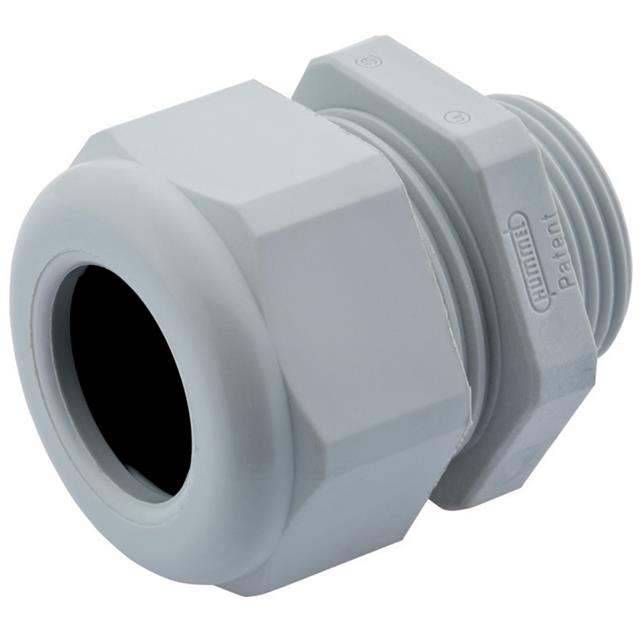

CABLE GLAND 4.06-7.87MM PG9
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
CD09AA-GY
ActiveHummel AG
CABLE GLAND 4.06-7.87MM PG9
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | CD09AA-GY |
|---|---|
| Color | Gray |
| Ingress Protection | IP69K, IP68, NEMA 6 |
| Material | Polyamide (PA66), Nylon 6/6 |
| Operating Temperature [Max] | 100 °C |
| Operating Temperature [Min] | -40 °C |
| Outside Cable Diameter (Max) | 7.87 mm |
| Outside Cable Diameter (Max) [Max] | 0.31 in |
| Outside Cable Diameter (Min) [Min] [diameter] | 4.06 mm |
| Outside Cable Diameter (Min) [Min] [diameter] | 0.16 in |
| Panel Hole Size | 15.2 mm |
| Panel Hole Size | 0.6 in |
| Thread Length | 7.87 mm |
| Thread Length | 0.31 in |
| Thread Size | PG9 |
| Type | Cable Gland |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 10 | $ 1.23 | |
| 100 | $ 1.14 | |||
| 500 | $ 1.09 | |||
| 1000 | $ 0.99 | |||
Description
General part information
CD09AA-GY
Cable Gland Polyamide (PA66), Nylon 6/6 PG9 Gray
