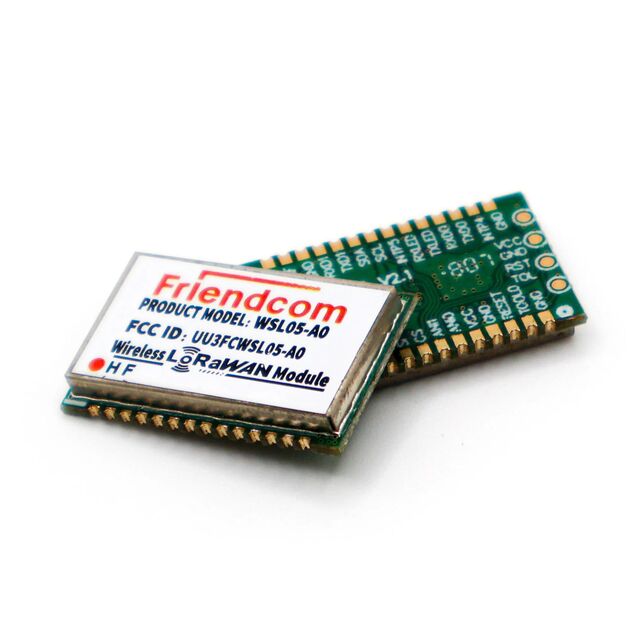

WSL05-A0
ActiveFriendcom Wireless
868/915 MHZ LORAWAN MODULE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
WSL05-A0
ActiveFriendcom Wireless
868/915 MHZ LORAWAN MODULE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | WSL05-A0 |
|---|---|
| Current - Transmitting [Max] | 124.4 mA |
| Current - Transmitting [Min] | 42.6 mA |
| Frequency | 915 MHz, 868 MHz |
| Modulation | LoRa |
| Mounting Type | Surface Mount |
| Protocol | LoRaWAN |
| RF Family/Standard | Amazon Sidewalk, Wireless M-Bus, 802.15.4, Wi-SUN NWP, 6LoWPAN |
| Sensitivity | -138 dBm |
| Serial Interfaces | UART, SPI |
| Voltage - Supply | 3.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 5 | $ 8.99 | |
| 10 | $ 7.67 | |||
| 25 | $ 7.03 | |||
| 50 | $ 6.57 | |||
| 100 | $ 6.12 | |||
Description
General part information
WSL05-A0
802.15.4, Wireless M-Bus, 6LoWPAN, Wi-SUN NWP, Amazon Sidewalk LoRaWAN Transceiver Module 868MHz, 915MHz Surface Mount
