6560-0115-01
ActiveEncitech Connectors AB
D-SUB BACKSHELL, 9-WAY, FULL MET
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6560-0115-01
ActiveEncitech Connectors AB
D-SUB BACKSHELL, 9-WAY, FULL MET
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6560-0115-01 |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit | 180 ° |
| Cable Type | Round |
| Color | Black |
| Compatible D-Sub Size | HD15pos, 9pos |
| Compatible Shell Size | E |
| Features | Mating Screws 4-40 |
| Hardware | Assembly Hardware, Grommets |
| Material | Zinc |
| Number of Positions | 9 |
| Primary Material | Metal |
| Shielding | Shielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 6.05 | |
| 10 | $ 4.63 | |||
| 25 | $ 4.18 | |||
| 50 | $ 3.87 | |||
| 100 | $ 3.59 | |||
| 250 | $ 3.26 | |||
| 500 | $ 3.04 | |||
| 1000 | $ 2.84 | |||
| 2500 | $ 2.60 | |||
Description
General part information
6560-0115-01

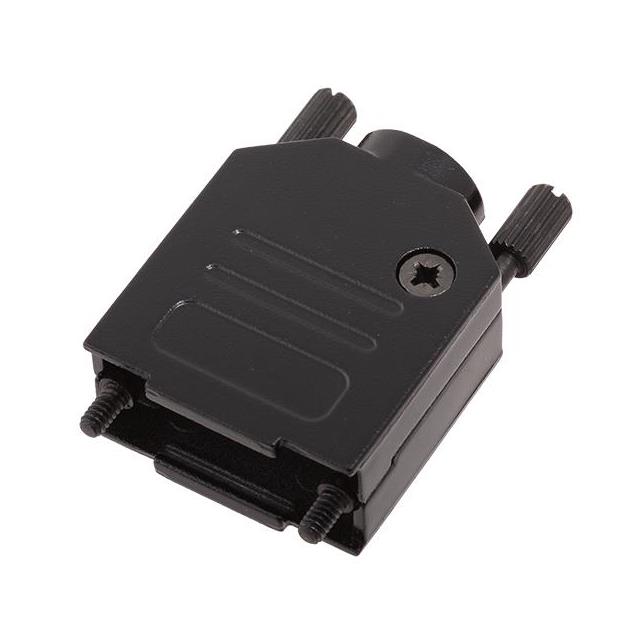

9 Position Two Piece Backshell Connector Black 180° Shielded
Documents
Technical documentation and resources
