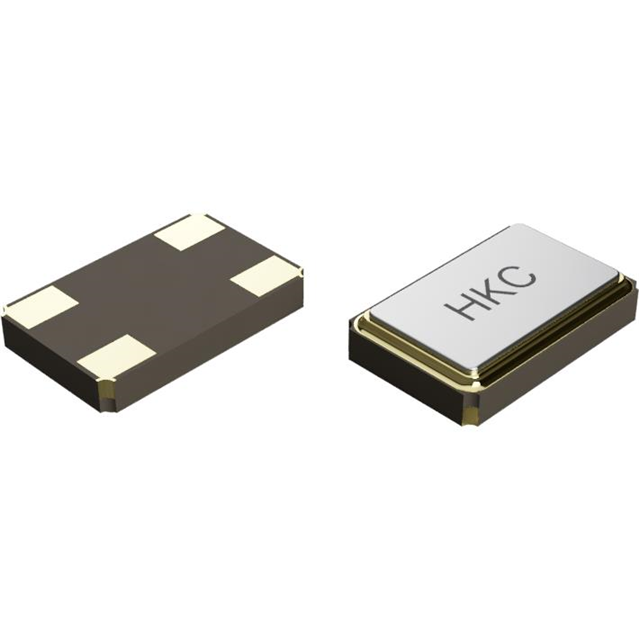

5032S41808BMDACKGEF-TR
ActiveHKC
CRYSTAL 18.08MHZ -40 ~ +125C 8PF
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
5032S41808BMDACKGEF-TR
ActiveHKC
CRYSTAL 18.08MHZ -40 ~ +125C 8PF
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 5032S41808BMDACKGEF-TR |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Frequency | 18.08 MHz |
| Frequency Stability | 50 ppm |
| Frequency Tolerance [Max] | 40 ppm |
| Frequency Tolerance [Min] | -20 ppm |
| Height - Seated (Max) [Max] | 0.039 " |
| Height - Seated (Max) [Max] | 1 mm |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 0.126 " |
| Size / Dimension [y] | 3.2 mm |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 1000 | $ 0.55 | |
| 3000 | $ 0.50 | |||
| 6000 | $ 0.45 | |||
| 9000 | $ 0.40 | |||
Description
General part information
5032S41808BMDACKGEF-TR
18.08 MHz -20ppm, +40ppm Crystal 8pF 50 Ohms 4-SMD, No Lead
