22609L01241
ActiveDLK Electronics
USB 3.0 AF RA STRAIGHT SIDES AND
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 22609L01241 |
|---|---|
| Connector Type | USB-A (USB TYPE-A) |
| Contact Finish | Gold |
| Current Rating (Amps) | 1.5 A |
| Gender | Receptacle |
| Insulation Color | Blue |
| Material Flammability Rating | UL94 V-0 |
| Mating Cycles | 1500 |
| Mounting Type | Through Hole, Surface Mount, Right Angle |
| Number of Contacts | 9 |
| Operating Temperature [Max] | 85 °C |
| Operating Temperature [Min] | -55 °C |
| Shell/Shielding Material | Steel (SUS) |
| Shielding | Shielded |
| Specifications | USB 3.0 |
| Termination | PC Board, Solder |
| Voltage - Rated | 36 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tape & Reel (TR) | 10 | $ 1.17 | |
| 20 | $ 1.12 | |||
| 50 | $ 1.09 | |||
| 100 | $ 1.04 | |||
| 200 | $ 0.97 | |||
Description
General part information

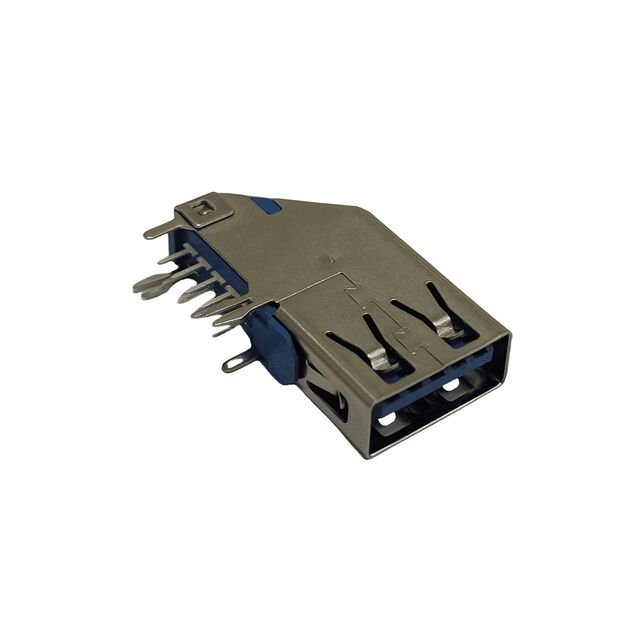

22609L01241
USB-A (USB TYPE-A) USB 3.0 Receptacle Connector 9 Position Surface Mount, Right Angle; Through Hole
