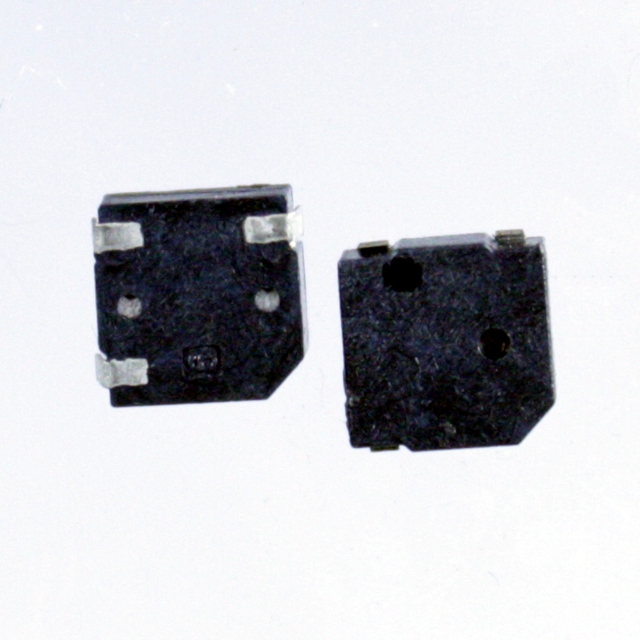

SMT5050-03H03-02
ActiveBeStar Technologies, Inc.
BUZZER MAGNETIC 3V 5MMX5MM SMD
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
SMT5050-03H03-02
ActiveBeStar Technologies, Inc.
BUZZER MAGNETIC 3V 5MMX5MM SMD
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | SMT5050-03H03-02 |
|---|---|
| Current - Supply | 110 mA |
| Frequency | 4 kHz |
| Height - Seated (Max) | 3 mm |
| Height - Seated (Max) [Max] | 0.118 in |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Port Location | Top |
| Size / Dimension [x] | 0.197 in |
| Size / Dimension [x] | 5 mm |
| Size / Dimension [y] | 5 mm |
| Size / Dimension [y] | 0.197 " |
| Sound Pressure Level (SPL) | 78 dB |
| Technology | Magnetic |
| Termination | Solder Pads |
| Voltage - Rated | 3 VDC |
| Voltage Range [Max] | 4 V |
| Voltage Range [Min] | 2 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 5 | $ 7.60 | |
| 25 | $ 6.86 | |||
| 50 | $ 6.63 | |||
| 100 | $ 6.44 | |||
Description
General part information
SMT5050-03H03-02
Buzzers Magnetic 3 V 110mA 4kHz 78dB @ 3V, 10cm Surface Mount Solder Pads
