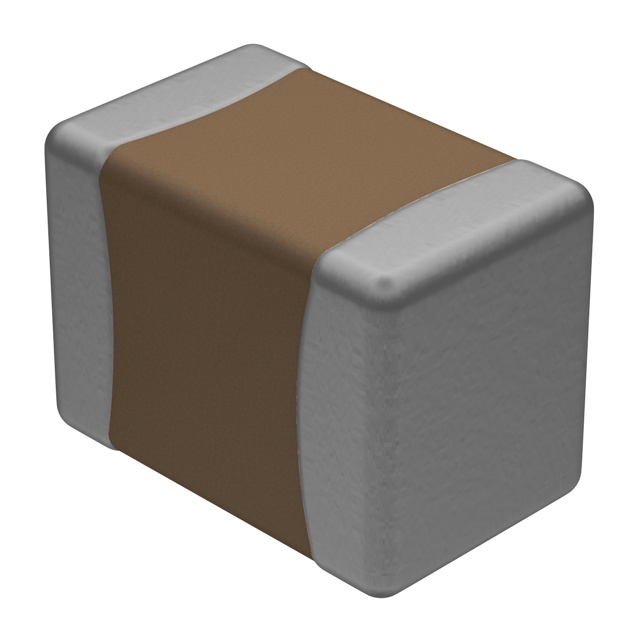

VJ0805Q1R0CXAAP
ObsoleteVishay General Semiconductor - Diodes Division
CAP CER 1PF 50V C0G/NP0 0805
Deep-Dive with AI
Search across all available documentation for this part.
VJ0805Q1R0CXAAP
ObsoleteVishay General Semiconductor - Diodes Division
CAP CER 1PF 50V C0G/NP0 0805
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | VJ0805Q1R0CXAAP |
|---|---|
| Applications | High Frequency, Microwave, RF |
| Capacitance | 1 pF |
| Features | Low Loss, High Q |
| Mounting Type | Surface Mount, MLCC |
| Operating Temperature [Max] | 150 °C |
| Operating Temperature [Min] | -55 °C |
| Package / Case | 0805 |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.049 in |
| Size / Dimension [y] | 1.25 mm |
| Temperature Coefficient | NP0, C0G |
| Thickness (Max) | 1.45 mm |
| Thickness (Max) [Max] [custom] | 0.057 in |
| Tolerance | 0.25 pF |
| Voltage - Rated | 50 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
VJ0805Q1R0CXAAP
1 pF ±0.25pF 50V Ceramic Capacitor C0G, NP0 0805 (2012 Metric)
Documents
Technical documentation and resources
No documents available
