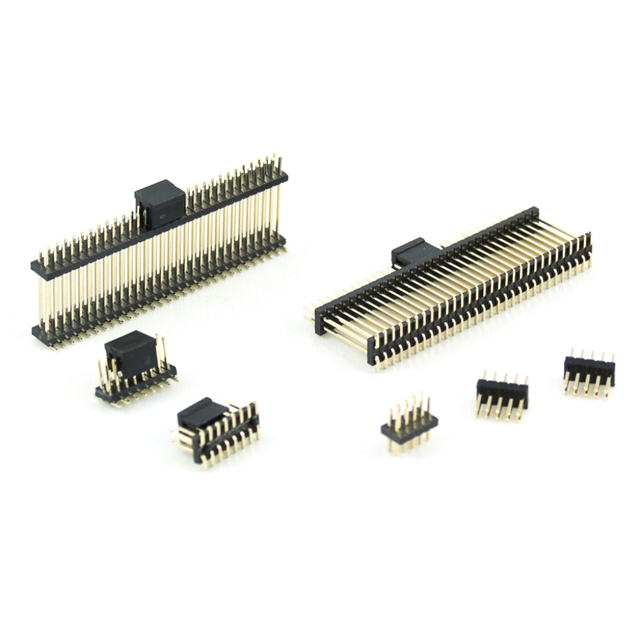

2215-2X05G00DN/3B
ActiveOupiin
PIN HEADER, DOUBLE ROW, 10 PIN,
Deep-Dive with AI
Search across all available documentation for this part.
2215-2X05G00DN/3B
ActiveOupiin
PIN HEADER, DOUBLE ROW, 10 PIN,
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 2215-2X05G00DN/3B |
|---|---|
| Connector Type | Header |
| Contact Finish - Mating | Gold |
| Contact Finish - Post | Gold |
| Contact Finish Thickness - Mating | Flash |
| Contact Finish Thickness - Post | Flash |
| Contact Length - Mating | 3 mm |
| Contact Length - Mating | 0.118 in |
| Contact Material | Copper Alloy |
| Contact Shape | Square |
| Contact Type | Male Pin |
| Fastening Type | Push-Pull |
| Features | Board Guide |
| Insulation Height | 0.039 " |
| Insulation Height | 1 mm |
| Insulation Material | Plastic |
| Material Flammability Rating | UL94 V-0 |
| Mounting Type | Surface Mount |
| Number of Positions | 10 |
| Number of Positions Loaded | All |
| Number of Rows | 2 |
| Operating Temperature [Max] | 105 ░C |
| Operating Temperature [Min] | -40 °C |
| Pitch - Mating | 0.05 in |
| Pitch - Mating | 1.27 mm |
| Row Spacing - Mating | 0.05 in |
| Row Spacing - Mating | 1.27 mm |
| Shrouding | Unshrouded |
| Termination | Solder |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 0.45 | |
| 1000 | $ 0.38 | |||
| 2000 | $ 0.30 | |||
| 3000 | $ 0.26 | |||
| 4000 | $ 0.23 | |||
Description
General part information
2215-2X05G00DN/3B
Connector Header Surface Mount 10 position 0.050" (1.27mm)
