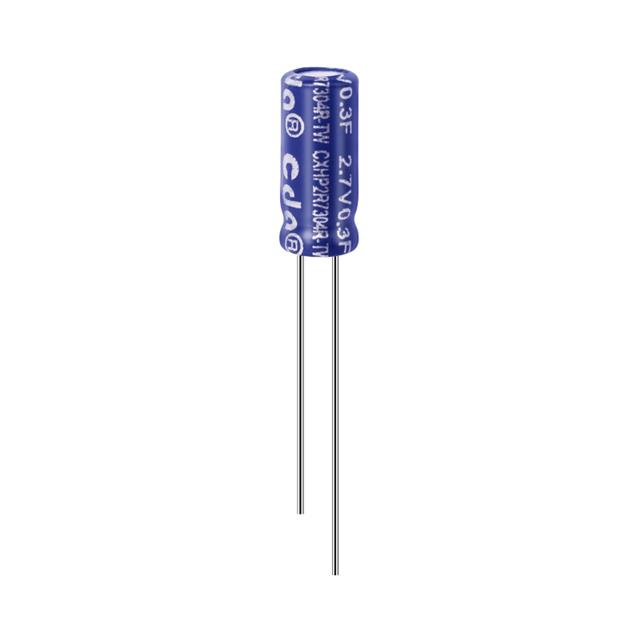

CXHP2R7304R-TW
ActiveCDA (Zhifengwei Technology)
4*10 2.7V 0.3F EDLC
Deep-Dive with AI
Search across all available documentation for this part.
CXHP2R7304R-TW
ActiveCDA (Zhifengwei Technology)
4*10 2.7V 0.3F EDLC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | CXHP2R7304R-TW |
|---|---|
| Capacitance | 300000 µF |
| ESR (Equivalent Series Resistance) | 700 mOhm |
| Height - Seated (Max) [Max] [z] | 12 mm |
| Height - Seated (Max) [Max] [z] | 0.472 " |
| Mounting Type | Through Hole |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | Radial, Can |
| Size / Dimension [diameter] | 4 mm |
| Size / Dimension [diameter] | 0.157 in |
| Termination | PC Pins |
| Tolerance [Max] | 80 % |
| Tolerance [Min] | -20 % |
| Voltage - Rated | 2.7 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 1.66 | |
| 10 | $ 1.05 | |||
| 50 | $ 0.80 | |||
| 100 | $ 0.73 | |||
| 500 | $ 0.60 | |||
| 1000 | $ 0.56 | |||
| 2500 | $ 0.51 | |||
| 5000 | $ 0.49 | |||
Description
General part information
CXHP2R7304R-TW
300 mF (EDLC) Supercapacitor 2.7 V Radial, Can 700mOhm @ 1kHz
