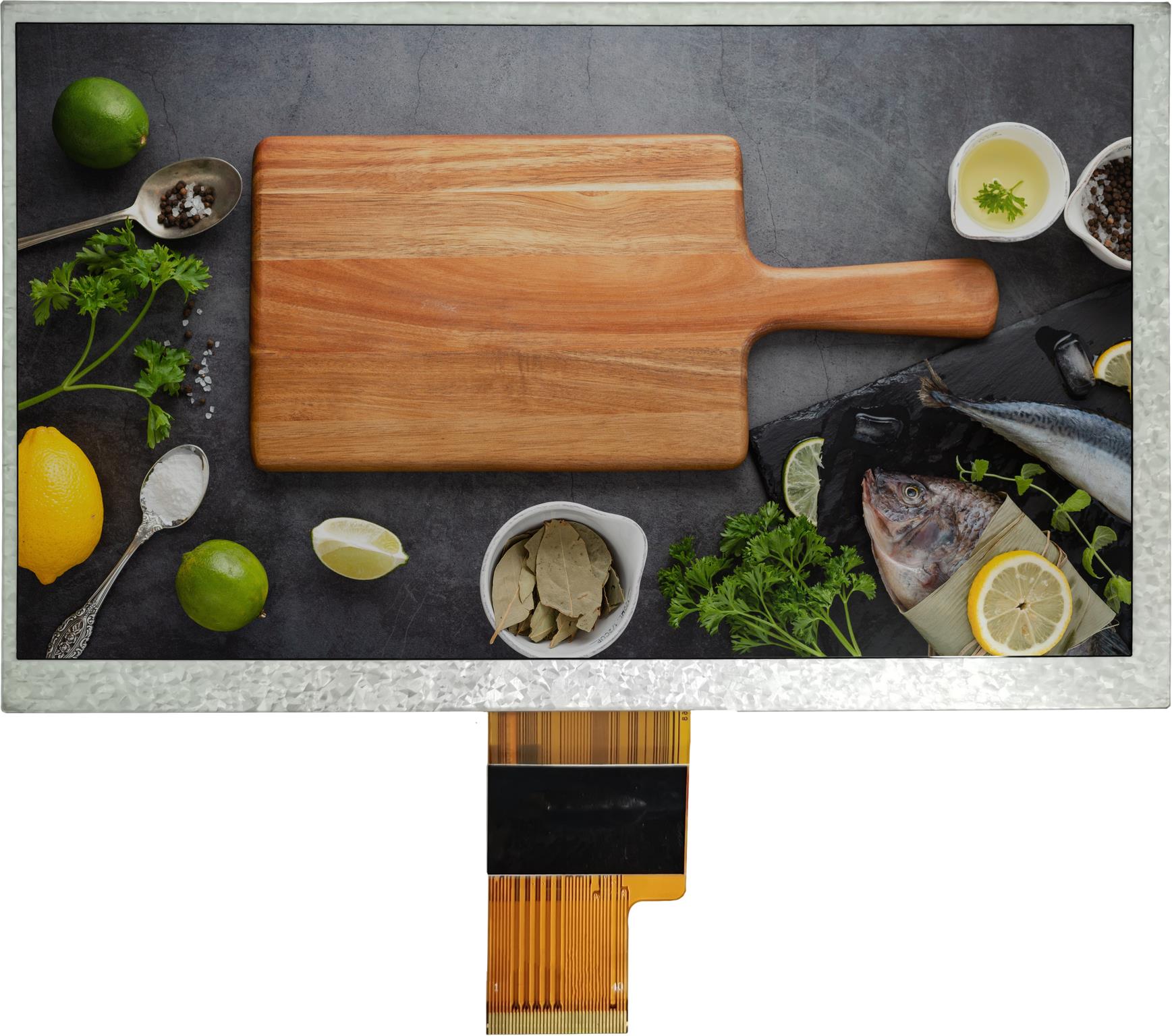

MDT0700E3IH-LVDS
ActiveMIDAS DISPLAYS
7.0" LVDS TFT, 1024X600 RESOLUTI
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MDT0700E3IH-LVDS
ActiveMIDAS DISPLAYS
7.0" LVDS TFT, 1024X600 RESOLUTI
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MDT0700E3IH-LVDS |
|---|---|
| Backlight | LED - Black |
| Controller Type | EK79001HN+EK73215BCGA |
| Diagonal Screen Size | 177.8 mm |
| Diagonal Screen Size | 7 in |
| Display Mode | Transmissive |
| Display Type | TFT - Color |
| Dot Pixels [x] | 1024 |
| Dot Pixels [y] | 600 pixels |
| Graphics Color | Green, Red, Blue |
| Interface | LVDS |
| Viewing Area [y] | 154.21 mm |
| Viewing Area [z] | 85.92 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Tray | 1 | $ 102.22 | |
| 10 | $ 94.35 | |||
| 30 | $ 87.61 | |||
| 50 | $ 81.77 | |||
| 100 | $ 70.61 | |||
| 200 | $ 69.69 | |||
| 300 | $ 69.00 | |||
| 500 | $ 68.00 | |||
Description
General part information
MDT0700E3IH-LVDS
Graphic LCD Display Module Transmissive Red, Green, Blue (RGB) TFT - Color LVDS 7" (177.80mm) 1024 x 600
Documents
Technical documentation and resources
