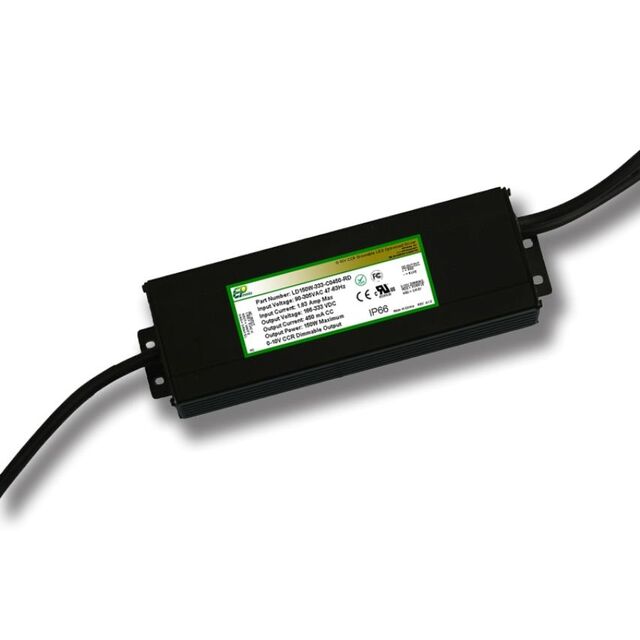

LD150W-35-C4200-PRD
ActiveEPtronics, Inc.
12~35V@4200MA, 0~10V DIM TO 5%
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | LD150W-35-C4200-PRD |
|---|---|
| Approval Agency | CE, FCC, cURus |
| Current - Output (Max) [Max] | 4.2 A |
| Dimming [Max] [custom] | 10 V |
| Dimming [Min] [custom] | 0 V |
| Efficiency | 89 % |
| Features | SCP, OCP, OVP |
| Mounting Type | Chassis Mount |
| Number of Outputs | 1 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -40 °C |
| Power (Watts) | 150 W |
| Ratings | IP66 |
| Size / Dimension [x] | 7.6 in |
| Size / Dimension [x] | 193 mm |
| Size / Dimension [y] | 2.33 in |
| Size / Dimension [y] | 59.2 mm |
| Size / Dimension [z] | 1.47 in |
| Size / Dimension [z] | 37.3 mm |
| Standard Number | C22.2, UL 8750 |
| Termination Style | Wire Leads |
| Topology | AC DC Converter |
| Type | Constant Current |
| Voltage - Input (Max) [Max] | 305 VAC |
| Voltage - Input (Min) [Min] | 100 VAC |
| Voltage - Isolation | 3750 V |
| Voltage - Output [Max] | 35 V |
| Voltage - Output [Min] | 12 V |
| Weight | 1.538 lbs |
| Weight | 697.4 g |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 89.49 | |
Description
General part information
LD150W-35-C4200-PRD
4.2A 12 ~ 35V Constant Current LED Driver AC DC Converter Topology 1 Output
