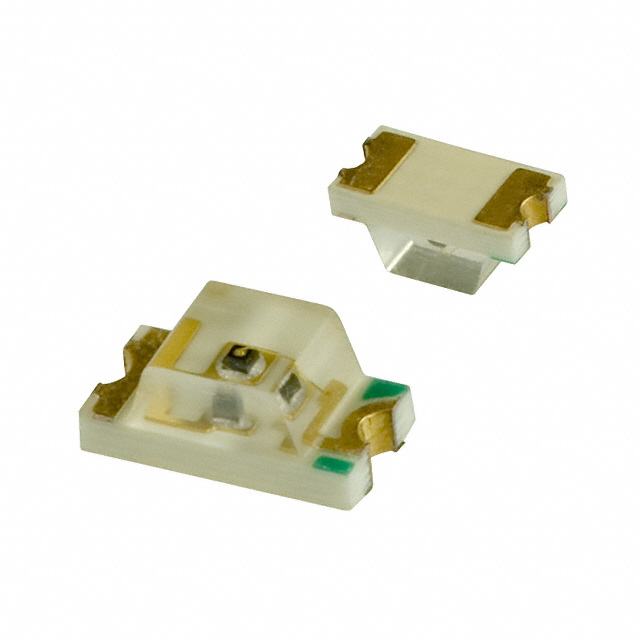

BG1101W-TR
ObsoleteStanley Electric Co
SINGLE COLOR LED, PURE GREEN, WATER CLEAR, 2MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
BG1101W-TR
ObsoleteStanley Electric Co
SINGLE COLOR LED, PURE GREEN, WATER CLEAR, 2MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BG1101W-TR |
|---|---|
| Color | Green |
| Configuration | Standard |
| Current - Test | 20 mA |
| Height (Max) [Max] | 1.9 mm |
| Lens Color | Colorless |
| Lens Size | 1.5 mm |
| Lens Style | Square with Flat Top |
| Lens Transparency | Clear |
| Millicandela Rating | 1.4 mcd |
| Mounting Type | Surface Mount |
| Package / Case | 1206 (3016 Metric) |
| Size / Dimension [x] | 3 mm |
| Size / Dimension [y] | 1.5 mm |
| Supplier Device Package | 3216 Type |
| Viewing Angle | 148 °, 144 ° |
| Voltage - Forward (Vf) (Typ) | 2.1 V |
| Wavelength - Dominant | 558 nm |
| Wavelength - Peak | 555 nm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
BG1101W-TR
Green 558nm LED Indication - Discrete 2.1V 1206 (3016 Metric)
