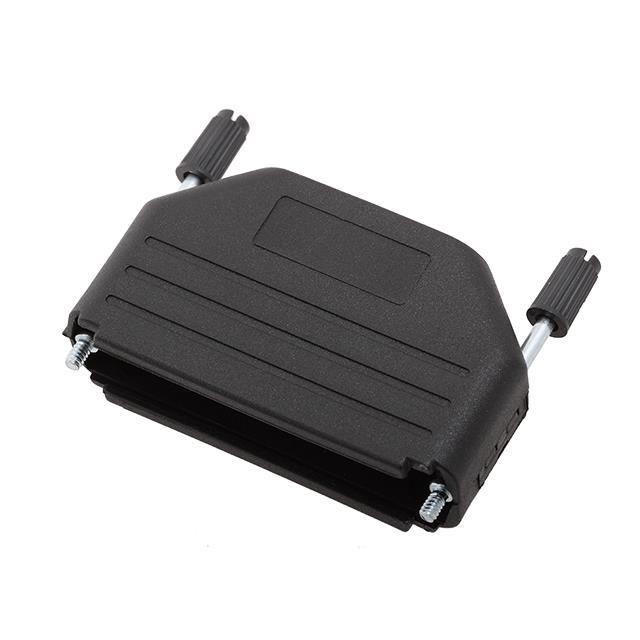

6260-0101-05
ActiveEncitech Connectors AB
D-SUB BACKSHELL, 50-WAY, UNSHIEL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
6260-0101-05
ActiveEncitech Connectors AB
D-SUB BACKSHELL, 50-WAY, UNSHIEL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 6260-0101-05 |
|---|---|
| Accessory Type | Two Piece Backshell |
| Cable Exit | 180 ° |
| Cable Type | Round |
| Color | Black |
| Compatible D-Sub Size | 50pos, HD78pos |
| Compatible Shell Size | D |
| Features | Mating Screws 4-40 |
| Hardware | Grommets, Assembly Hardware, Cable Clamp |
| Material | Polyamide (PA), Nylon |
| Number of Positions | 50 |
| Primary Material | Plastic |
| Shielding | Unshielded |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bag | 1 | $ 3.01 | |
| 10 | $ 2.30 | |||
| 25 | $ 2.07 | |||
| 50 | $ 1.92 | |||
| 100 | $ 1.78 | |||
| 250 | $ 1.61 | |||
| 500 | $ 1.50 | |||
| 1000 | $ 1.39 | |||
| 2500 | $ 1.27 | |||
Description
General part information
6260-0101-05
50 Position Two Piece Backshell Connector Black 180° Unshielded
Documents
Technical documentation and resources
