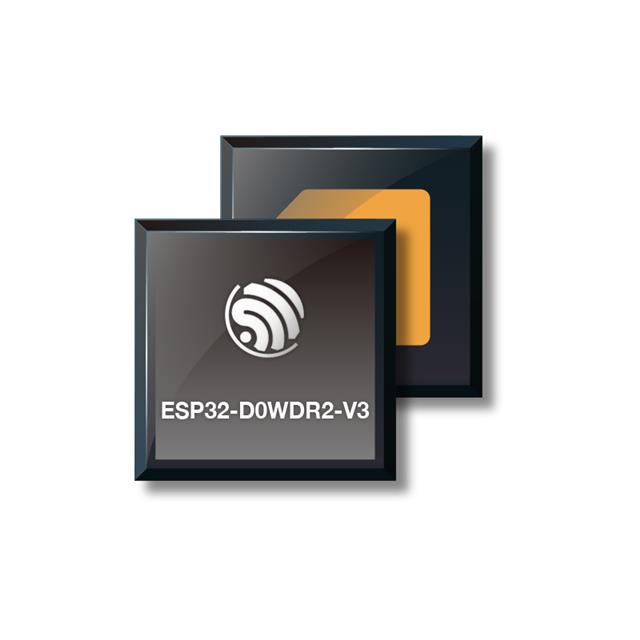

ESP32-D0WDR2-V3
ActiveEspressif Systems
IC RF TXRX+MCU BLE 48QFN
Deep-Dive with AI
Search across all available documentation for this part.
ESP32-D0WDR2-V3
ActiveEspressif Systems
IC RF TXRX+MCU BLE 48QFN
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | ESP32-D0WDR2-V3 |
|---|---|
| Current - Receiving [Max] | 100 mA |
| Current - Receiving [Min] | 95 mA |
| Current - Transmitting [Max] | 240 mA |
| Current - Transmitting [Min] | 130 mA |
| Data Rate (Max) | 150 Mbps |
| Frequency | 2.4 GHz |
| GPIO | 34 |
| Memory Size [custom] | 2 MB |
| Memory Size [custom] | 536 kB |
| Memory Size [custom] | 448 kB |
| Modulation | OFDM, 8DPSK, DQPSK, DSSS |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -40 °C |
| Package / Case | 48-VFQFN Exposed Pad |
| Power - Output | 19.5 dBm |
| Protocol | Class 1, Bluetooth v4.2 + EDR, Class 3, 802.11b/g/n, Class 2 |
| RF Family/Standard | WiFi, Bluetooth |
| Sensitivity | -98 dBm |
| Serial Interfaces | I2S, GPIO, PWM, SDIO, I2C, UART, SPI, ADC |
| Supplier Device Package | 48-QFN (5x5) |
| Type | TxRx + MCU |
| Voltage - Supply [Max] | 3.6 V |
| Voltage - Supply [Min] | 2.3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 1.95 | |
| Digi-Reel® | 1 | $ 1.95 | ||
| Tape & Reel (TR) | 5000 | $ 1.95 | ||
Description
General part information
ESP32-D0WDR2-V3
IC RF TxRx + MCU Bluetooth, WiFi 802.11b/g/n, Bluetooth v4.2 + EDR, Class 1, 2 and 3 2.4GHz 48-VFQFN Exposed Pad
