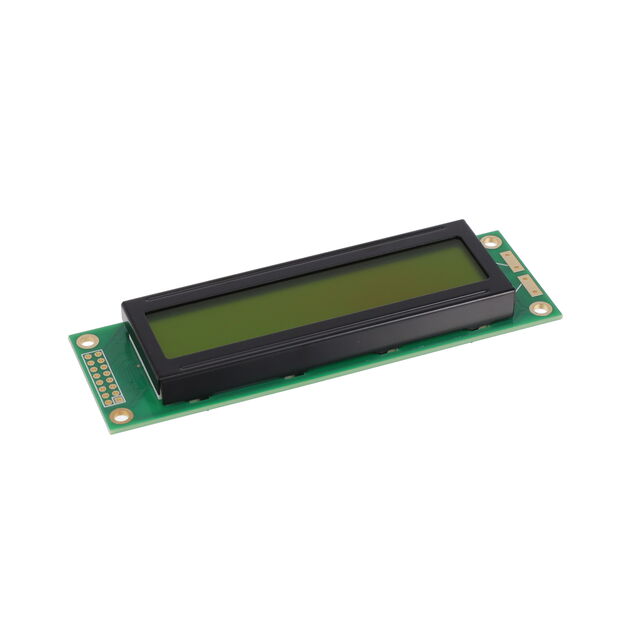

ACM2002E-FL-YTS-G
ActiveAZ Displays
DISPLAY LCD CHARACTER 20X2 TRANS
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ACM2002E-FL-YTS-G
ActiveAZ Displays
DISPLAY LCD CHARACTER 20X2 TRANS
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ACM2002E-FL-YTS-G |
|---|---|
| Backlight | LED |
| Character Format [x] | 5 Dots |
| Character Format [y] | 8 Dots |
| Character Size [y] | 3.2 mm |
| Character Size [z] | 5.55 mm |
| Controller Type | KS0066 |
| Display Format [x] | 20 |
| Display Format [y] | 2 |
| Dot Size [custom] | 0.65 mm |
| Dot Size [custom] | 0.6 mm |
| Number of Characters | 40 |
| Outline L x W x H [x] | 116 mm |
| Outline L x W x H [y] | 37 mm |
| Outline L x W x H [z] | 13.5 mm |
| Viewing Area [x] | 83 mm |
| Viewing Area [y] | 18.6 mm |
| Voltage - Supply [Max] | 5.5 V |
| Voltage - Supply [Min] | 2.7 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 12.03 | |
| 10 | $ 9.01 | |||
| 100 | $ 7.91 | |||
Description
General part information
ACM2002E-FL-YTS-G
Character Display Module 5 x 8 Dots LED 116.00mm x 37.00mm x 13.50mm
