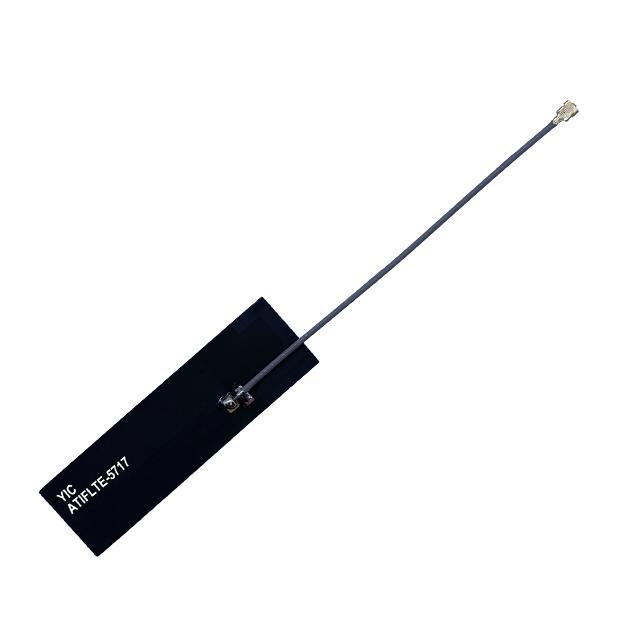

ATIFLTE-5717-80
ActiveYIC
RF ANT 4G/LTE FLEX PCB 5717 80MM
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
ATIFLTE-5717-80
ActiveYIC
RF ANT 4G/LTE FLEX PCB 5717 80MM
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | ATIFLTE-5717-80 |
|---|---|
| Antenna Type | PCB Trace |
| Applications | LTE, 4G |
| Features | Cable - 80mm |
| Frequency (Center/Band) | 725 MHz, 2.2 GHz, 895 MHz |
| Frequency Group [Max] | 1 GHz, 3 GHz |
| Frequency Group [Min] | 300 MHz, 2 GHz |
| Frequency Range [Max] | 980 MHz, 2.69 GHz, 800 MHz |
| Frequency Range [Min] | 810 MHz, 1.71 GHz, 650 MHz |
| Gain | 2 dBic |
| Mounting Type | Adhesive |
| Number of Bands | 3 |
| RF Family/Standard | Cellular |
| Termination | I-PEX |
| VSWR | 2.5 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 3.36 | |
Description
General part information
ATIFLTE-5717-80
RF ANTENNA 4G, LTE PCB Trace I-PEX Adhesive
Documents
Technical documentation and resources
