K5331X12BALB2A-37
ActivePelonis Technologies

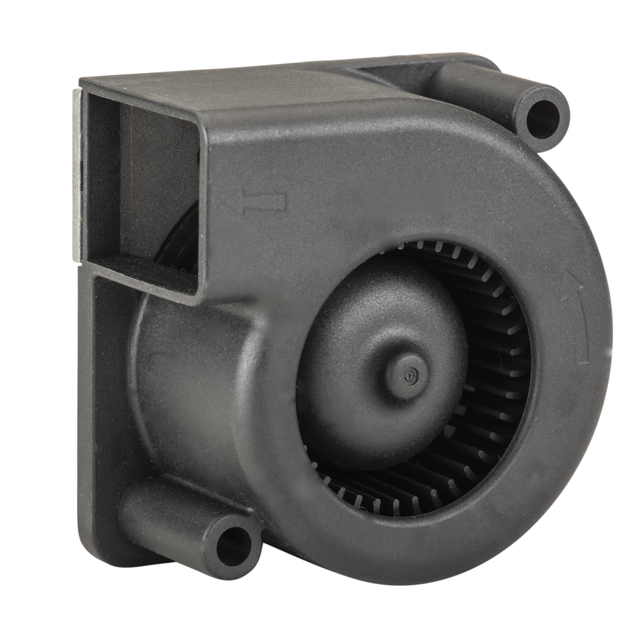

FAN BLOWER 53X31MM 12VDC WIRE
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
K5331X12BALB2A-37
ActivePelonis Technologies
FAN BLOWER 53X31MM 12VDC WIRE
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | K5331X12BALB2A-37 |
|---|---|
| Air Flow | 0.039 m³/min |
| Air Flow | 13.6 CFM |
| Approval Agency | cUL, UL, CE |
| Bearing Type | Ball |
| Fan Type | Blower |
| Features | Polarity Protection, Auto Restart, Locked Rotor Protection, Speed Sensor (Tach) |
| Noise | 47.7 dB(A) |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -10 °C |
| Operating Temperature [Min] | -10 °C |
| Power (Watts) | 7.8 W |
| RPM | 10000 RPM |
| Size / Dimension | Rectangular/Round |
| Size / Dimension [x] | 53 mm |
| Size / Dimension [z] | 53 mm |
| Static Pressure | 246.6 Pa |
| Static Pressure | 0.99 in H2O |
| Termination | 3 Wire Leads |
| Voltage - Rated | 12 VDC |
| Width [y] | 31 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
Description
General part information
K5331X12BALB2A-37
Fan Blower 12VDC Rectangular/Round - 53mm L x 53mm H Ball 13.6 CFM (0.039m³/min) 3 Wire Leads
