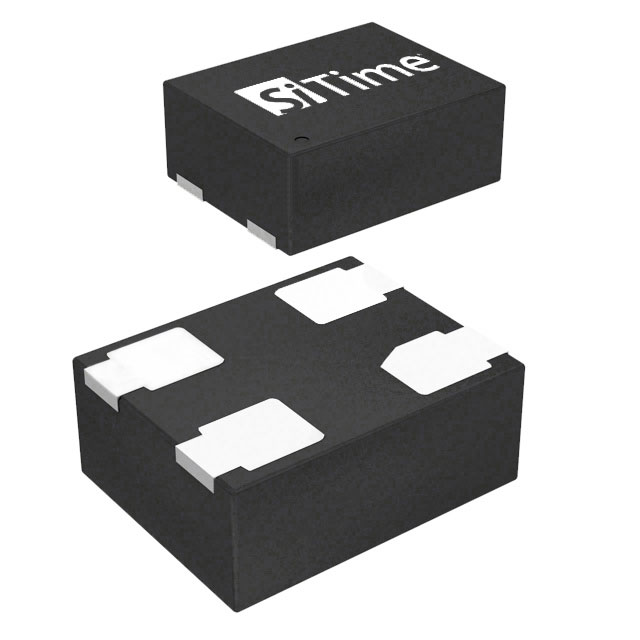

SIT1602BC-71-XXN-18.432000
ActiveSiTime
MEMS OSC XO 18.4320MHZ H/LV-CMOS
Deep-Dive with AI
Search across all available documentation for this part.
SIT1602BC-71-XXN-18.432000
ActiveSiTime
MEMS OSC XO 18.4320MHZ H/LV-CMOS
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | SIT1602BC-71-XXN-18.432000 |
|---|---|
| Base Resonator | MEMS |
| Current - Supply (Max) [Max] | 4.5 mA |
| Frequency | 18.432 MHz |
| Frequency Stability | 20 ppm |
| Height - Seated (Max) [Max] [z] | 0.8 mm |
| Height - Seated (Max) [Max] [z] | 0.031 " |
| Mounting Type | Surface Mount |
| Operating Temperature [Max] | 70 °C |
| Operating Temperature [Min] | -20 C |
| Output | HCMOS, LVCMOS |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 2 mm |
| Size / Dimension [x] | 0.079 in |
| Size / Dimension [y] | 0.063 in |
| Size / Dimension [y] | 1.6 mm |
| Type | XO (Standard) |
| Voltage - Supply [Max] | 3.63 V |
| Voltage - Supply [Min] | 2.25 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Strip | 1 | $ 1.48 | |
| 10 | $ 1.41 | |||
| 50 | $ 1.38 | |||
| 100 | $ 1.18 | |||
| 500 | $ 1.15 | |||
| 1000 | $ 0.97 | |||
| 2500 | $ 0.92 | |||
| 5000 | $ 0.89 | |||
| 10000 | $ 0.85 | |||
Description
General part information
SIT1602BC-71-XXN-18.432000
18.432 MHz XO (Standard) HCMOS, LVCMOS Oscillator 2.25V ~ 3.63V 4-SMD, No Lead
