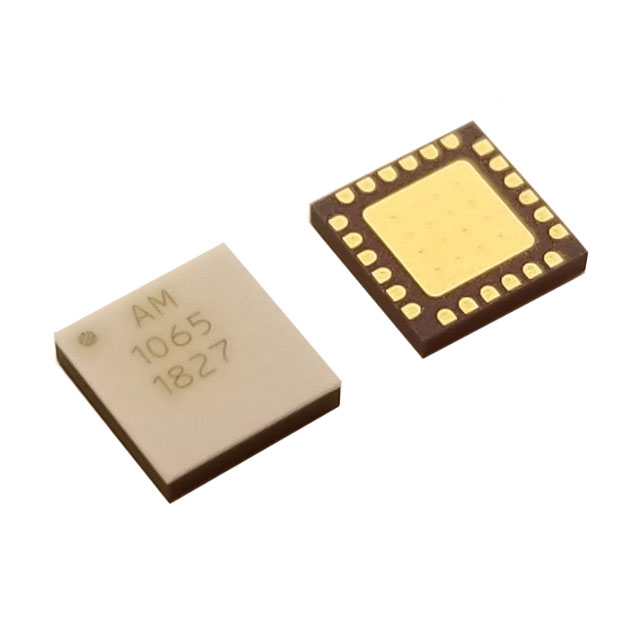

AM1065
ActiveAtlanta Micro Inc.
IC RF AMP GPS 0HZ-8GHZ 24CQFN
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
AM1065
ActiveAtlanta Micro Inc.
IC RF AMP GPS 0HZ-8GHZ 24CQFN
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | AM1065 |
|---|---|
| Current - Supply | 72 mA |
| Frequency [Max] | 8 GHz |
| Frequency [Min] | 0 Hz |
| Gain | 20 dBi |
| Mounting Type | Surface Mount |
| Noise Figure | 2 dB |
| P1dB | 18 dBm |
| Package / Case | 24-VFCQFN Exposed Pad |
| RF Type | General Purpose |
| Supplier Device Package | 24-CQFN |
| Supplier Device Package [x] | 3.9 |
| Supplier Device Package [y] | 3.9 |
| Voltage - Supply [Max] | 5.2 V |
| Voltage - Supply [Min] | 3 V |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 65.02 | |
| 10 | $ 60.63 | |||
| 25 | $ 56.24 | |||
| 100 | $ 52.72 | |||
| Digi-Reel® | 1 | $ 65.02 | ||
| 10 | $ 60.63 | |||
| 25 | $ 56.24 | |||
| 100 | $ 52.72 | |||
| Tape & Reel (TR) | 1250 | $ 44.81 | ||
Description
General part information
AM1065
RF Amplifier IC General Purpose 0Hz ~ 8GHz 24-CQFN (3.9x3.9)
