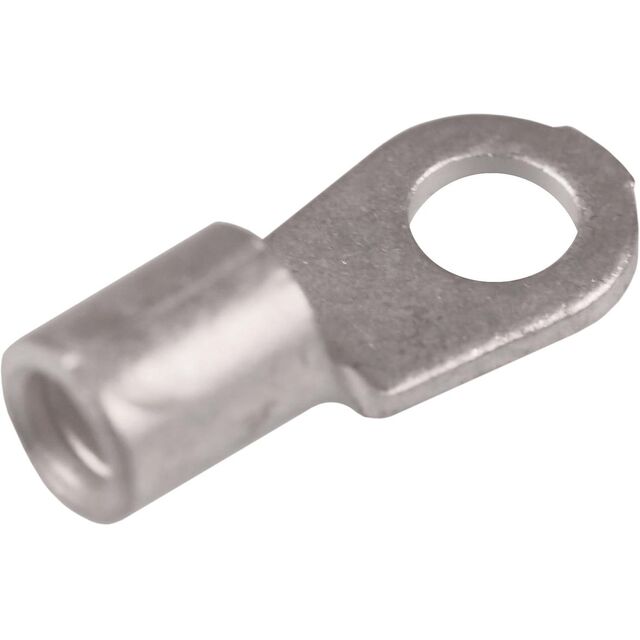

B2585R
ActiveElpress Inc.
CONN RING 1.5-2.5MM2 M8, 14AWG
Deep-Dive with AI
Search across all available documentation for this part.
B2585R
ActiveElpress Inc.
CONN RING 1.5-2.5MM2 M8, 14AWG
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | B2585R |
|---|---|
| Contact Finish | Tin |
| Contact Material | Copper |
| Features | Brazed Seam |
| Insulation | Non-Insulated |
| Length - Overall [x] | 0.906 in |
| Length - Overall [x] | 23 mm |
| Mounting Type | Free Hanging (In-Line) |
| Stud/Tab Size | M8 Stud |
| Terminal Type | Circular |
| Termination | Crimp |
| Thickness | 0.8 mm |
| Thickness | 0.031 in |
| Width - Outer Edges [y] | 0.551 in |
| Width - Outer Edges [y] | 14 mm |
| Wire Gauge [Max] | 2.5 mm˛ |
| Wire Gauge [Min] | 1.5 mm˛ |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Retail Package | 400 | $ 0.28 | |
Description
General part information
B2585R
Ring Terminal Connector M8 Stud Circular 1.5 ~ 2.5mm² Crimp
Documents
Technical documentation and resources
No documents available
