8003
ActiveRadial Magnets, Inc.

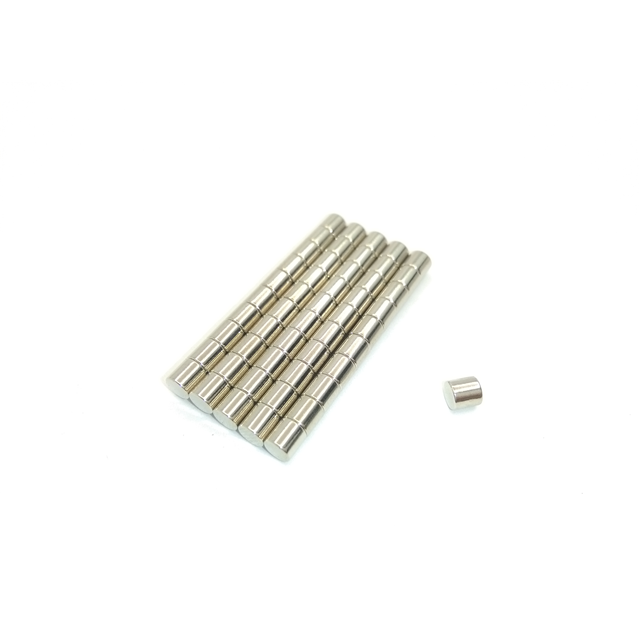

MAGNET 0.125"DX0.125"H CYL 1=1PC
Deep-Dive with AI
Search across all available documentation for this part.
8003
ActiveRadial Magnets, Inc.
MAGNET 0.125"DX0.125"H CYL 1=1PC
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 8003 |
|---|---|
| Finish | NiCuNi |
| Gauss Strength | 5769 G |
| Grade | N35 |
| Magnetization | Axial |
| Material | Neodymium Iron Boron (NdFeB) |
| Operating Temperature | 80 °C |
| Shape | Cylindrical |
| Size [diameter] | 0.125 in |
| Size [diameter] | 3.18 mm |
| Size [z] | 0.125 in |
| Size [z] | 3.18 mm |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 1 | $ 0.26 | |
| 10 | $ 0.22 | |||
| 25 | $ 0.20 | |||
| 50 | $ 0.18 | |||
| 100 | $ 0.16 | |||
| 500 | $ 0.13 | |||
| 1000 | $ 0.11 | |||
| 5000 | $ 0.10 | |||
| Retail Package | 1 | $ 13.12 | ||
| 10 | $ 9.28 | |||
| 25 | $ 8.29 | |||
| 100 | $ 7.18 | |||
| 250 | $ 6.65 | |||
| 500 | $ 6.32 | |||
| 1000 | $ 6.11 | |||
Description
General part information
8003
Magnet Neodymium Iron Boron (NdFeB) N35 0.125" Dia x 0.125" H (3.18mm x 3.18mm)
