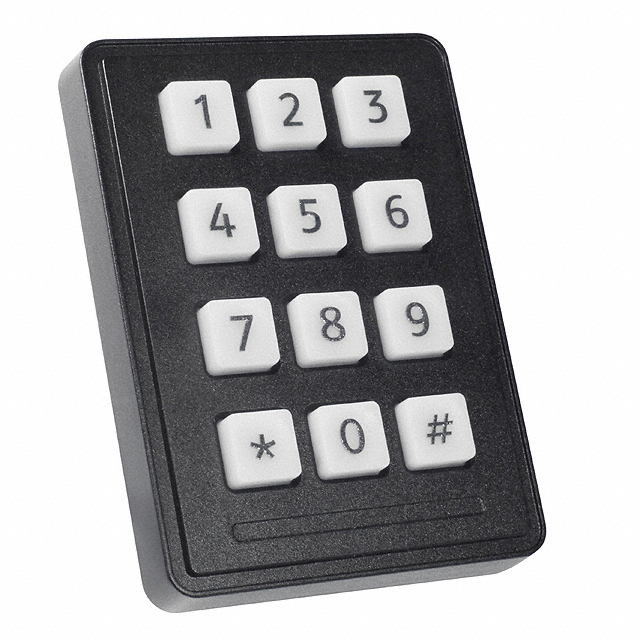

7203-12T0203
ActiveSTORM INTERFACE
KEYPAD, 3 X 4, MATRIX, POLYMER, 50 MA, 24 V
Deep-Dive with AI
Search across all available documentation for this part.
7203-12T0203
ActiveSTORM INTERFACE
KEYPAD, 3 X 4, MATRIX, POLYMER, 50 MA, 24 V
Deep-Dive with AI
Technical Specifications
Parameters and characteristics for this part
| Specification | 7203-12T0203 |
|---|---|
| Approval Agency | CE |
| Contact Rating @ Voltage | 0.05 A, 24 VDC |
| Illumination | Non-Illuminated |
| Ingress Protection | IP65 - Dust Tight, Water Resistant |
| Key Color | White |
| Key Type | Polymer |
| Legend | Telephone Format |
| Legend Color | Black |
| Legend Type | Fixed |
| Matrix (Columns x Rows) [custom] | 4 |
| Matrix (Columns x Rows) [custom] | 3 |
| Mounting Type | Panel Mount, Front or Rear |
| Number of Keys | 12 |
| Operating Temperature [Max] | 60 °C |
| Operating Temperature [Min] | -20 C |
| Operational Life | 2000000 Cycles |
| Output Type | 1.81 mOhm |
| Switch Type | Conductive Rubber |
| Termination Style | Pin Header |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
Description
General part information
7203-12T0203
Keypad Switch 12 Polymer Keys Conductive Rubber Contacts Matrix Output Non-Illuminated 0.05A @ 24VDC
