MP07655
ActiveGolledge Electronics Ltd

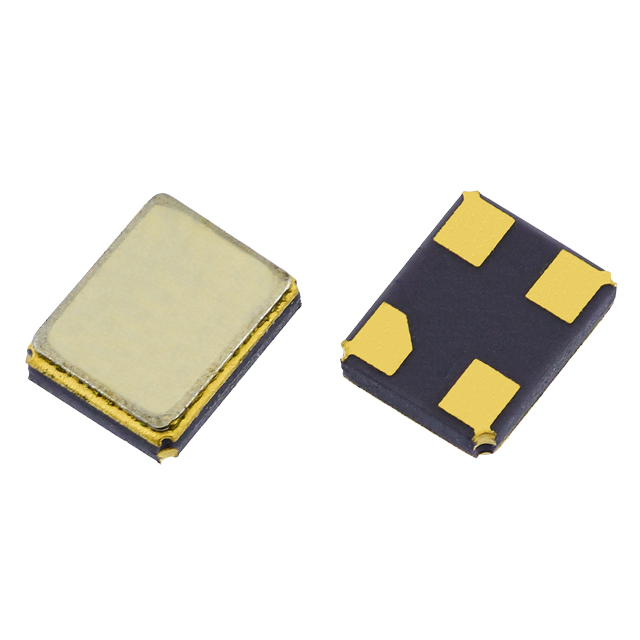

32.0MHZ GSX-323/1P3MF SM CRYSTAL
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
MP07655
ActiveGolledge Electronics Ltd
32.0MHZ GSX-323/1P3MF SM CRYSTAL
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | MP07655 |
|---|---|
| ESR (Equivalent Series Resistance) | 50 Ohms |
| Frequency | 32 MHz |
| Frequency Stability | 15 ppm |
| Frequency Tolerance | 10 ppm |
| Height - Seated (Max) [Max] [z] | 0.6 mm |
| Height - Seated (Max) [Max] [z] | 0.024 in |
| Load Capacitance | 8 pF |
| Mounting Type | Surface Mount |
| Operating Mode | Fundamental |
| Operating Temperature [Max] | 80 C |
| Operating Temperature [Min] | -30 ░C |
| Package / Case | 4-SMD, No Lead |
| Size / Dimension [x] | 0.098 " |
| Size / Dimension [x] | 2.5 mm |
| Size / Dimension [y] | 2 mm |
| Size / Dimension [y] | 0.079 in |
| Type | MHz Crystal |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Cut Tape (CT) | 1 | $ 0.45 | |
| 10 | $ 0.38 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.30 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.24 | |||
| Digi-Reel® | 1 | $ 0.45 | ||
| 10 | $ 0.38 | |||
| 50 | $ 0.34 | |||
| 100 | $ 0.30 | |||
| 500 | $ 0.29 | |||
| 1000 | $ 0.24 | |||
| Tape & Reel (TR) | 3000 | $ 0.27 | ||
| 6000 | $ 0.26 | |||
| 9000 | $ 0.25 | |||
| 15000 | $ 0.24 | |||
| 21000 | $ 0.24 | |||
| 30000 | $ 0.23 | |||
Description
General part information
MP07655
32 MHz ±10ppm Crystal 8pF 50 Ohms 4-SMD, No Lead
