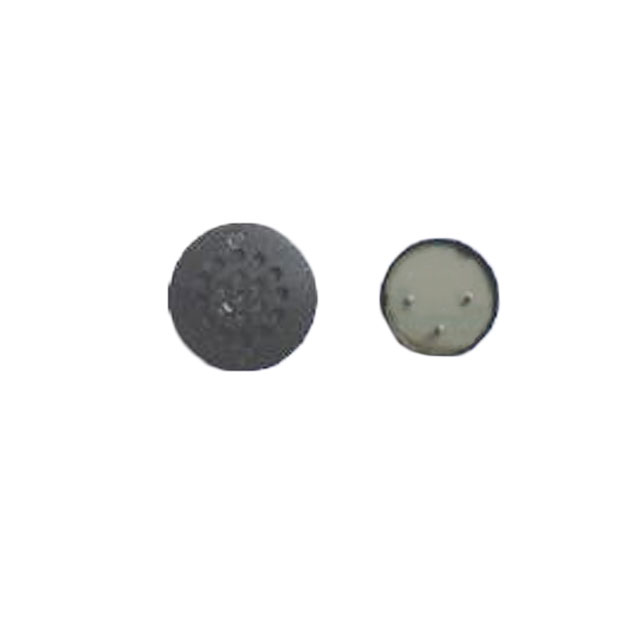

BDT3032H12.8-02
ActiveBeStar Technologies, Inc.
SPEAKER 32OHM 1.3W 100DB
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | BDT3032H12.8-02 |
|---|---|
| Efficiency - dBA | 100 dBA |
| Efficiency - Type | Sound Pressure Level (SPL) |
| Frequency Range [Max] | 4 kHz |
| Frequency Range [Min] | 1 kHz |
| Height - Seated (Max) [Max] | 0.504 in |
| Height - Seated (Max) [Max] | 12.8 mm |
| Impedance | 32 Ohms |
| Material - Cone | Polyethylenimine (PEI) |
| Material - Magnet | Nd-Fe-B N35H |
| Power - Max [Max] | 1.5 W |
| Power - Rated | 1.3 W |
| Shape | Round |
| Size / Dimension [diameter] | 30 mm |
| Size / Dimension [diameter] | 1.181 inches |
| Technology | Magnetic |
| Termination | PC Pins |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Box | 5 | $ 25.00 | |
| 25 | $ 16.67 | |||
| 50 | $ 12.50 | |||
| 100 | $ 8.33 | |||
Description
General part information
BDT3032H12.8-02
32 Ohms Speaker 1.3 W 1 kHz ~ 4 kHz Round
