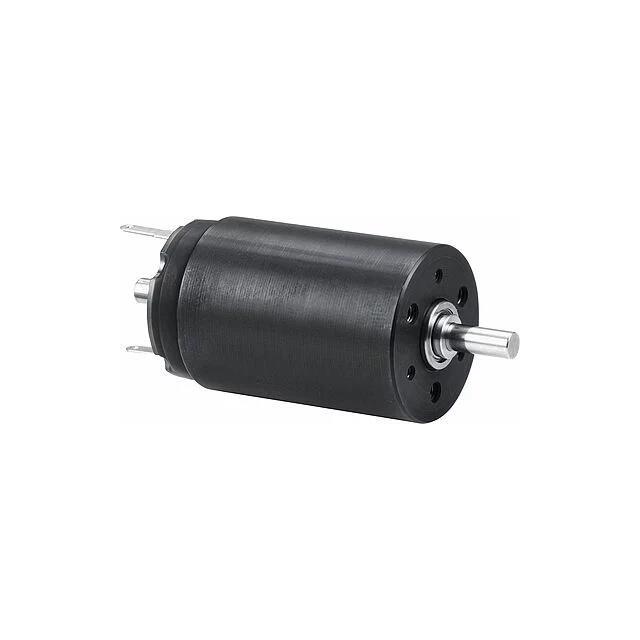

3000004091
ActiveFaulhaber
2642W012CR
Deep-Dive with AI
Search across all available documentation for this part.
DocumentsDatasheet
3000004091
ActiveFaulhaber
2642W012CR
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 3000004091 |
|---|---|
| Diameter - Shaft [diameter] | 0.157 in |
| Diameter - Shaft [diameter] | 4 mm |
| Function | Standard |
| Length - Shaft and Bearing [x] | 12.4 mm |
| Length - Shaft and Bearing [x] | 0.488 in |
| Motor Type | Brushed |
| Mounting Hole Spacing | 17 mm |
| Mounting Hole Spacing | 0.669 " |
| Operating Temperature [Max] | 125 °C |
| Operating Temperature [Min] | -30 ░C |
| Power - Rated | 8 W |
| RPM | 4290 RPM |
| Termination Style | Solder Tab |
| Torque - Rated (oz-in / mNm) | 4.248 oz-in |
| Torque - Rated (oz-in / mNm) | 30 mNm |
| Type | DC Motor |
| Voltage - Rated | 12 VDC |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 260.40 | |
| 5 | $ 211.60 | |||
| 20 | $ 162.70 | |||
| 50 | $ 154.70 | |||
Description
General part information
3000004091
Brushed DC Motor Standard 4290 RPM 8W 12VDC
