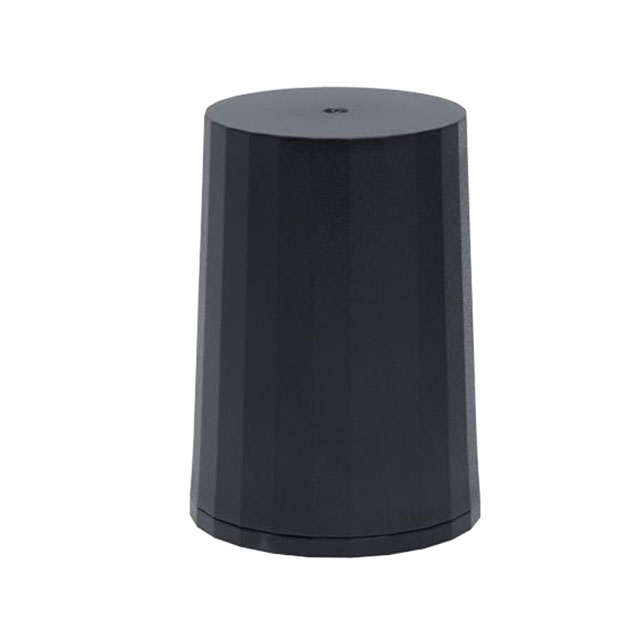

33-HC872-28
ActiveCalian
DUAL BAND ANTENNA + L BAND
Deep-Dive with AI
DocumentsDatasheet
Technical Specifications
Parameters and characteristics for this part
| Specification | 33-HC872-28 |
|---|---|
| Antenna Type | Helical |
| Applications | GLONASS, GPS, Galileo, Beidou |
| Frequency (Center/Band) | 1.2345 GHz, 1.5655 GHz |
| Frequency Group | UHF |
| Frequency Group [Max] | 2 GHz |
| Frequency Group [Min] | 1 GHz |
| Frequency Range [Max] | 1.254 GHz, 1.606 GHz |
| Frequency Range [Min] | 1.215 GHz, 1.525 GHz |
| Gain | 28 dBi |
| Height (Max) [Max] | 62.4 mm |
| Height (Max) [Max] | 2.457 in |
| Ingress Protection | IP67 |
| Mounting Type | Connector Mount |
| Number of Bands | 2 |
| RF Family/Standard | Navigation |
| VSWR | 1.8 |
Pricing
Prices provided here are for design reference only. For realtime values and availability, please visit the distributors directly
| Distributor | Package | Quantity | $ | |
|---|---|---|---|---|
| Digikey | Bulk | 1 | $ 199.00 | |
Description
General part information
33-HC872-28
RF ANTENNA Beidou, Galileo, GLONASS, GPS Helical SMA Male Connector Mount
